HYB 314175BJL-55

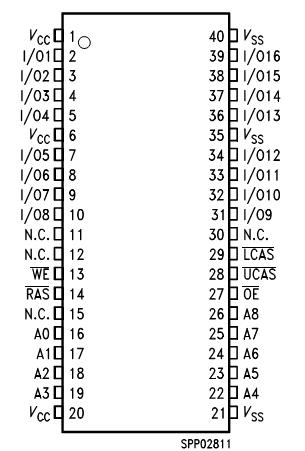

Pinout




Specifications

Operating temperature range ........................................................................................ 0 to + 70
Storage temperature range..................................................................................... 55 to + 150
Input/output voltage..................................................................................... 1 to (V_CC + 0.5, 4.6) V
Power supply voltage................................................................................................... 1 to + 4.6 V
Data out current (short circuit)................................................................................................50 mA


Description

The HYB HYB 314175BJL-55 is the new generation dynamic RAM organized as 262 144 words by 16-bit.  The HYB 314175BJ/BJL utilizes CMOS silicon gate process as well as advanced circuit techniques to provide wide operation margins, both internally and for the system user.  Multiplexed address inputs permit the HYB 314175BJL-55 to be packed in a standard plastic 400mil wide P-SOJ-40-1 package.  This package size provides high system bit densities and is compatible with commonly used automatic testing and insertion equipment.  System oriented features include Self Refresh (L-Version), single + 3.3 V (± 0.3 V) power supply, direct interfacing with high performance logic device families.
