Part Number: IC41SV44054
Description: The ICSI 44052/44054 Series is a 4,194,304 x 4-bit highperformance CMOS Dynamic Random Access Memory. ...
- Table of contents:
IC41SV44054
-
Suppliers
DataSheet
General Description
IC41SV44054 General Description
The ICSI 44052/44054 Series is a 4,194,304 x 4-bit highperformance CMOS Dynamic Random Access Memory. The Fast Page Mode allows 2,048 or 4,096 random accesses within a single row with access cycle time as short as 20 ns per 4-bit word.
These features make the 44052/44054 Series ideally suited for digital signal processing, and low power portable audio applications.
The 44052/44054 Series is packaged in a 26-pin 300mil SOJ and a 26 pin TSOP-2
IC41SV44054 Maximum Ratings
| Symbol | Parameters | Rating | Unit |
| VT | Voltage on Any Pin Relative to GND | −0.5 to +3.0 | V |
| VCC | Supply Voltage | −0.5 to +3.0 | V |
| IOUT | Output Current | 50 | mA |
| PD | Power Dissipation | 0.2 | W |
| TA | Commercial Operation Temperature | -10 to +70 | °C |
| TSTG | Storage Temperature | −55 to +125 | °C |
Note:
1. Stress greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability
IC41SV44054 Features
• Fast Page Mode Access Cycle
• TTL compatible inputs and outputs
• Refresh Interval:
-- 2,048 cycles/32 ms
-- 4,096 cycles/64 ms
• Refresh Mode: RAS-Only, CAS-before-RAS (CBR), and Hidden
• JEDEC standard pinout
• Single power supply: 1.9V − 2.7V
• TTL compatible inputs and outputs
• Refresh Interval:
-- 2,048 cycles/32 ms
-- 4,096 cycles/64 ms
• Refresh Mode: RAS-Only, CAS-before-RAS (CBR), and Hidden
• JEDEC standard pinout
• Single power supply: 1.9V − 2.7V

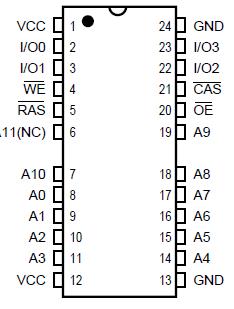

IC41SV44054 Connection Diagram
IC41SV44054-100J
