IC42S16400A

Features:

• Single 3.3V (± 0.3V) power supply
• High speed clock cycle time -6: 166MHz, -7: 133MHz<3-3-3>
• Fully synchronous operation referenced to clock rising edge
• Possible to assert random column access in every cycle
• Quad internal banks contorlled by A12 & A13 (Bank Select)
• Byte control by LDQM and UDQM for IC42S16400A
• Programmable Wrap sequence (Sequential / Interleave)
• Programmable burst length (1, 2, 4, 8 and full page)
• Programmable CAS latency (2 and 3)
• Automatic precharge and controlled precharge
• CBR (Auto) refresh and self refresh
• LVTTL compatible inputs and outputs
• 4,096 refresh cycles / 64ms
• Burst termination by Burst stop and Precharge command
• Package 400mil 54-pin TSOP-2 and 60ball(64M) VF-BGA
• Pb(lead)-free package is available

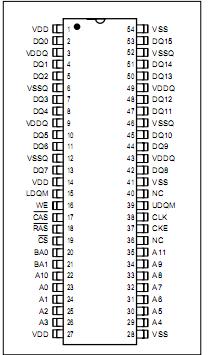

Pinout




Specifications




Description

The IC42S16400A are high-speed 67,108,864-bit syn-chronous dynamic random-access memories, orga-nized as 1,048,576 x 16 x 4 (word x bit x bank), respectively.

The synchronous DRAMs of the IC42S16400A achieved high-speed data transfer using the pipeline architecture and clock frequency up to 166MHz for -6. All input and outputs are synchronized with the positive edge of the clock.The synchronous DRAMs are compatible with Low Voltage TTL (LVTTL).These products are packaged in 54-pin TSOP-2 and 60ball(64M) VF-BGA.
