Product Details

Description



Features:

• High-speed access times:
- 8, 10, 12 and 15 ns
• High-preformance, lower-power CMOS process
• Multiple center power and ground pins for greater noise immunity
• Easy memory expansion with CE and OE options
• CE power-down
• CMOS power: 540 mW @ 10 ns 36 mW standby mode
• TTL compatible inputs and outputs
• Single 3.3V ± 10% power supply
• Packages available:
- 36-pin 400mil SOJ
- 44-pin TSOP-2

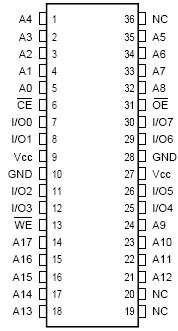

Pinout

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
VCC Power Supply Voltage Relative to GND
0.5 to +4.6
V
VTERM Terminal Voltage with Respect to GND
0.5 to Vcc + 0.5
V
TBIAS Temperature Under Bias
Com.
Ind.
10 to +85
45 to +90
TSTG Storage Temperature
65 to +150
PD Power Dissipation
1
W
IOUT DC Output Current
±20
mA
1. Stress greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied.Exposure to absolute maximum rating conditions for extended periods may affect reliability.


Description

The ICSI IC61LV2568 is a very high-speed, low power,262,144-word by 8-bit COMS static RAM. The IC61LV2568 is fabricated using ICSI's high-performance CMOS technology. This highly reliable process coupled with innovative circuit design techniques, yields higher preformance and low power consumotion devices.

When CE is HIGH (deselected), the device assumes a standby mode at which the power dissipation can be reduced down to 36 mW (max.) with CMOS input levels.

The IC61LV2568 operates from a single 3.3V power supply and all inputs are TTL-compatible.

The IC61LV2568 is available in 36-pin, 400mil SOJ and 44-pin TSOP-2 package
