IC61LV5128

Features: • High-speed access times:- 8, 10, 12 and 15 ns• High-preformance, lower-power CMOS process• Multiple center power and ground pins for greater noise immunity• Easy memory expansion with CE andOE options• CE power-down• Fully static operation: no clock ...

product image

IC61LV5128 Picture
See larger image
SeekIC No. : 004370405 Detail

IC61LV5128: Features: • High-speed access times:- 8, 10, 12 and 15 ns• High-preformance, lower-power CMOS process• Multiple center power and ground pins for greater noise immunity• Easy ...

IC61LV5128 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IC61LV5128
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• High-speed access times:
- 8, 10, 12 and 15 ns
• High-preformance, lower-power CMOS process
• Multiple center power and ground pins for greater noise immunity
• Easy memory expansion with CE and OE options
• CE power-down
• Fully static operation: no clock or refresh reguired
• TTL compatible inputs and outputs
• Single 3.3V ± 10% power supply
• Packages available:
- 36-pin 400mil SOJ
- 44-pin TSOP-2

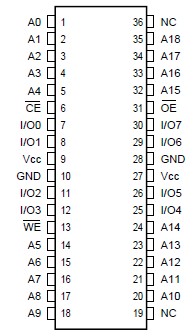

Pinout

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
VTERM
Terminal Voltage with Respect to GND
0.5 to Vcc + 0.5
V
TBIAS
Temperature Under Bias
55 to +125
TSTG
Storage Temperature
65 to +150
PD
Power Dissipation
1.0
W

Notes:
1. Stress greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.




Description

The ICSI IC61LV5128 is a very high-speed, low power, 524,288-word by 8-bit COMS static RAM. The IC61LV5128 is fabricated using ICSI's high-performance CMOS technology. This highly reliable process coupled with innovative circuit design techniques, yields higher preformance and low power consumotion devices.

When CE is HIGH (deselected), the device assumes a standby mode at which the power dissipation can be reduced down to 250 W (typical) with CMOS input levels.

The IC61LV5128 operates from a single 3.3V power supply and all inputs are TTL-compatible.

The IC61LV5128 is available in 36-pin, 400mil SOJ and 44-pin TSOP-2 package.
