Purchase ICE2A280, In-stock ICE2A280 From SeekIC.
MFG:INFELON
Part Number: ICE2A280
MFG: INFELON
Description: The second generation COOLSET™-F2 provides several special enhancements to satisfy the needs for...
- Table of contents:
ICE2A280
-
Suppliers
DataSheet
General Description
ICE2A280 General Description
The second generation COOLSET™-F2 provides several special enhancements to satisfy the needs for low power standby and protection features. In standby mode frequency reduction is used to lower the power consumption and support a stable output voltage in this mode. The frequency reduction is limited to 21.5 kHz to avoid audible noise. In case of failure modes like open loop, overvoltage or overload due to short circuit the device switches in Auto Restart Mode which is controlled by the internal protection unit. By means of the internal precise peak current limitation the dimension of the transformer and the secondary diode can be lower which leads to more cost efficiency
ICE2A280 Maximum Ratings
| Parameter |
Symbol |
Limit Values |
Unit |
Remarks | ||
|
min. |
max. | |||||
| Drain Source Voltage ICE2A165/265/365 |
VDS |
- |
650 |
V |
Tj=110°C | |
| Drain Source Voltage ICE2A180/280 |
VDS |
800 | ||||
| Avalanche energy, repetitive tAR limited by max. Tj=150°C1) |
ICE2A165 |
EAR1 |
- |
0.2 |
mJ |
|
| CE2A265Z |
EAR2 |
- |
0.4 |
mJ |
||
| ICE2A365 |
EAR3 |
- |
0.5 |
mJ |
||
| ICE2A180 |
EAR4 |
- |
0.2 |
mJ |
||
| ICE2A280Z |
EAR5 |
- |
0.4 |
mJ |
||
| Avalanche current, repetitive tAR limited by max. Tj=150°C1) |
ICE2A165 |
IAR1 |
- |
1 |
A |
|
| ICE2A265 |
IAR2 |
- |
2 |
A |
||
| ICE2A365 |
IAR3 |
- |
3 |
A |
||
| ICE2A180 |
IAR4 |
- |
1 |
A |
||
| ICE2A280 |
IAR5 |
- |
2 |
A |
||
| VCC Supply Voltage |
VCC |
-0.3 |
22 |
V |
||
| FB Voltage |
VFB |
-0.3 |
6.5 |
V |
||
| SoftS Voltage |
VSoftS |
-0.3 |
6.5 |
V |
||
| ISense |
ISense |
-0.3 |
3 |
V |
||
| Junction Temperature |
Tj |
-40 |
150 |
°C |
Controller & CoolMOS™ | |
| Storage Temperature |
TS |
-50 |
150 |
°C |
||
| Thermal Resistance Junction-Ambient |
RthJA |
- |
90 |
K/W |
P-DIP-8-6 | |
| ESD Capability2) |
VESD |
- |
2 |
kV |
Human Body Model | |
ICE2A280 Features
• 650V/800V Avalanche Rugged CoolMOS™
• Only few external Components required
• Input Undervoltage Lockout
• 100kHz Switching Frequency
• Max Duty Cycle 72%
• Low Power Standby Mode to meet European Commission Requirements
• Thermal Shut Down with Auto Restart
• Overload and Open Loop Protection
• Overvoltage Protection during Auto Restart
• Adjustable Peak Current Limitation via External Resistor
• Overall Tolerance of Current Limiting < ±5%
• Internal Leading Edge Blanking
• User defined Soft Start
• Soft Switching for Low EMI
• Only few external Components required
• Input Undervoltage Lockout
• 100kHz Switching Frequency
• Max Duty Cycle 72%
• Low Power Standby Mode to meet European Commission Requirements
• Thermal Shut Down with Auto Restart
• Overload and Open Loop Protection
• Overvoltage Protection during Auto Restart
• Adjustable Peak Current Limitation via External Resistor
• Overall Tolerance of Current Limiting < ±5%
• Internal Leading Edge Blanking
• User defined Soft Start
• Soft Switching for Low EMI
ICE2A280 Connection Diagram
ICE2A280
PDF/DataSheet Download
- Datasheet: ICE2A280
- File Size: 1532372 KB
- Manufacturer: INFINEON [Infineon Technologies AG]
- Click here to Download
- ·ICE1PCS01
- INFINEON [Infineon Technologies AG]
- Standalone Power Factor Correction (PFC) Controller in Continuous Conduction Mode (CCM)
- 869959 KB
- ·ICE1PCS01G
- INFINEON [Infineon Technologies AG]
- Standalone Power Factor Correction (PFC) Controller in Continuous Conduction Mode (CCM)
- 869959 KB
- ·ICE1PD265G
- INFINEON [Infineon Technologies AG]
- Power Factor Controller + Cool- MOS: BoostSET IC for High Power Factor and low THD
- 80953 KB
- ·ICE1QS01
- INFINEON [Infineon Technologies AG]
- Controller for Switch Mode Power Supplies Supporting Low Power Standby and Power Factor Correction (PFC)
- 496025 KB
- ·ICE1QS01G
- INFINEON [Infineon Technologies AG]
- Controller for Switch Mode Power Supplies Supporting Low Power Standby and Power Factor Correction (PFC)
- 496025 KB
- ·ICE2A0165
- INFINEON [Infineon Technologies AG]
- Off-Line SMPS Current Mode Controller with integrated 650V/ 800V CoolMOS
- 1758125 KB
- ·ICE2A0265
- INFINEON [Infineon Technologies AG]
- Off-Line SMPS Current Mode Controller with integrated 650V/ 800V CoolMOS
- 1758125 KB
- ·ICE2A0365
- INFINEON [Infineon Technologies AG]
- Off-Line SMPS Current Mode Controller with integrated 650V/ 800V CoolMOS
- 1758125 KB
ICE2A280 Relative Products
ICE2A265
The second generation COOLSET™-F2 of the ICE2A265 provides several special enhancements to satisfy the needs for low power standby and protection features. In standby mode frequency reduction is used to lower the power consumption and support a stable ...

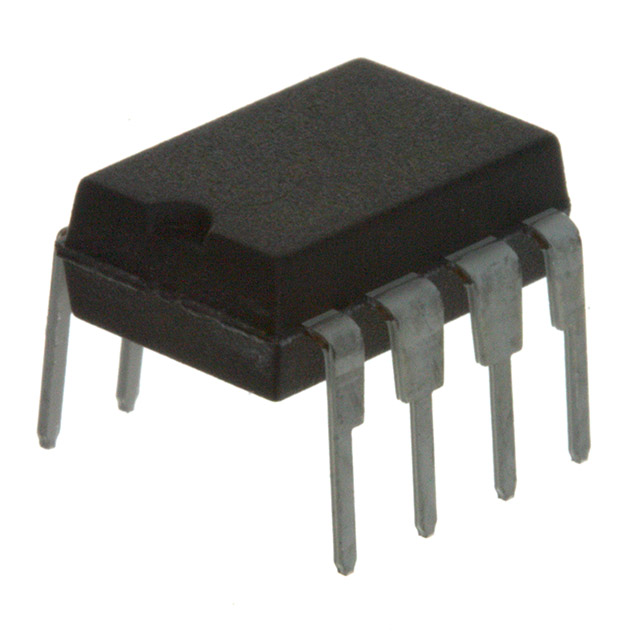

ICE2A180Z
