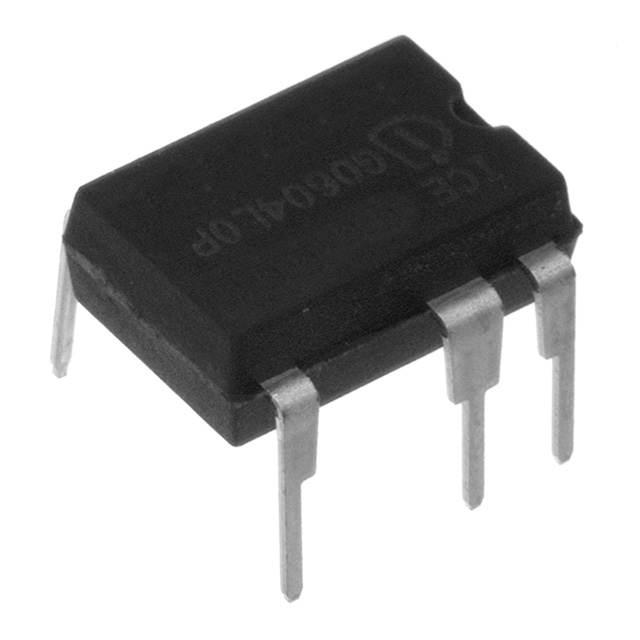

MFG:INFINEON Package Cooled:DIP
MFG: INFINEON
Package Cooled: DIP
Description: The second generation COOLSET™-F2 provides several special enhancements to satisfy the needs for...
The second generation COOLSET™-F2 provides several special enhancements to satisfy the needs for low power standby and protection features. In standby mode frequency reduction is used to lower the power consumption and support a stable output voltage in this mode. The frequency reduction is limited to 21.5 kHz to avoid audible noise. In case of failure modes like open loop, overvoltage or overload due to short circuit the device switches in Auto Restart Mode which is controlled by the internal protection unit. By means of the internal precise peak current limitation the dimension of the transformer and the secondary diode can be lower which leads to more cost efficiency
| Parameter |
Symbol |
Limit Values |
Unit |
Remarks | ||
|
min. |
max. | |||||
| Drain Source Voltage ICE2A165/265/365 |
VDS |
- |
650 |
V |
Tj=110°C | |
| Drain Source Voltage ICE2A180/280 |
VDS |
800 | ||||
| Avalanche energy, repetitive tAR limited by max. Tj=150°C1) |
ICE2A165 |
EAR1 |
- |
0.2 |
mJ |
|
| CE2A265Z |
EAR2 |
- |
0.4 |
mJ |
||
| ICE2A365 |
EAR3 |
- |
0.5 |
mJ |
||
| ICE2A180 |
EAR4 |
- |
0.2 |
mJ |
||
| ICE2A280Z |
EAR5 |
- |
0.4 |
mJ |
||
| Avalanche current, repetitive tAR limited by max. Tj=150°C1) |
ICE2A165 |
IAR1 |
- |
1 |
A |
|
| ICE2A265 |
IAR2 |
- |
2 |
A |
||
| ICE2A365 |
IAR3 |
- |
3 |
A |
||
| ICE2A180 |
IAR4 |
- |
1 |
A |
||
| ICE2A280 |
IAR5 |
- |
2 |
A |
||
| VCC Supply Voltage |
VCC |
-0.3 |
22 |
V |
||
| FB Voltage |
VFB |
-0.3 |
6.5 |
V |
||
| SoftS Voltage |
VSoftS |
-0.3 |
6.5 |
V |
||
| ISense |
ISense |
-0.3 |
3 |
V |
||
| Junction Temperature |
Tj |
-40 |
150 |
°C |
Controller & CoolMOS™ | |
| Storage Temperature |
TS |
-50 |
150 |
°C |
||
| Thermal Resistance Junction-Ambient |
RthJA |
- |
90 |
K/W |
P-DIP-8-6 | |
| ESD Capability2) |
VESD |
- |
2 |
kV |
Human Body Model | |
ICE2A365
PDF/DataSheet Download
