ICM7249

Features: • Hour Meter Requires Only 4 Parts Total• Micropower Operation: < 1mA at 2.8V (Typ)• 10 Year Operation On One Lithium Cell. 21/2 Year Battery Life with Display Connected• Directly Drives 51/2 Digit LCD• 14 Programmable Modes of Operation• Times Hrs....

product image

ICM7249 Picture
See larger image
SeekIC No. : 004370640 Detail

ICM7249: Features: • Hour Meter Requires Only 4 Parts Total• Micropower Operation: < 1mA at 2.8V (Typ)• 10 Year Operation On One Lithium Cell. 21/2 Year Battery Life with Display Connect...

ICM7249 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ICM7249
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Hour Meter Requires Only 4 Parts Total
• Micropower Operation: < 1mA at 2.8V (Typ)
• 10 Year Operation On One Lithium Cell. 21/2 Year Battery Life with Display Connected
• Directly Drives 51/2 Digit LCD
• 14 Programmable Modes of Operation
• Times Hrs., 0.1 Hrs., 0.01 Hrs., 0.1 Mins.
• Counts 1's, 10's, 100's, 1000's
• Dual Function Input Circuit- Selectable Debounce for Counter- High-Pass Filter for Timer
• Direct AC Line Triggering with Input Resistor
• Winking "Timer Active" Display Output
• Display Test Feature


Application

• AC or DC Hour Meters
• AC or DC Totalizers
• Portable Battery Powered Equipment
• Long Range Service Meters


Pinout

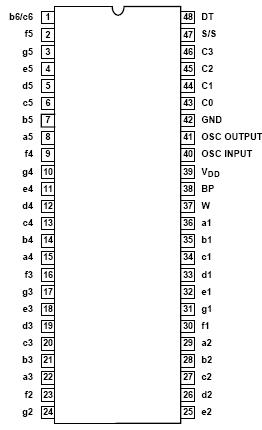

Connection Diagram


Specifications

Supply Voltage (VDD - VSS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6V
Input Voltage, Pins 43 - 48 (Note 1) . . (VSS - 0.3V) to (VDD + 0.3V)


Description

The ICM7249 Timer/Counter is intended for long-term battery-supported industrial applications. The ICM7249 typically draws 1mA during active timing or counting, due to Intersil' special low-power design techniques. This allows more than 10 years of continuous operation without battery replacement. The chip offers four timing modes, eight counting modes and four test modes.

The ICM7249 is a 48 lead device, powered by a single DC voltage source and controlled by a 32.768kHz quartz crystal.No other external components are required. Inputs to the chip are TTL-compatible and outputs drive standard direct drive LCD segments.
