Product Details

Description



Features:

• Packaged in 20 pin tiny SSOP (QSOP)
• Input Frequency of 27.0 MHz
• Zero ppm synthesis error in output clocks
• Provides fixed 13.5 MHz and 27.0 MHz.
   Also provides two selectable Processor Clocks,
   one Audio Clock, and one Communications Clock
• Ideal for Digital Video/MPEG-based applications
• 3.3 V or 5.0 V operating voltage
• Entire chip powers down (when CS1=CS0=0)

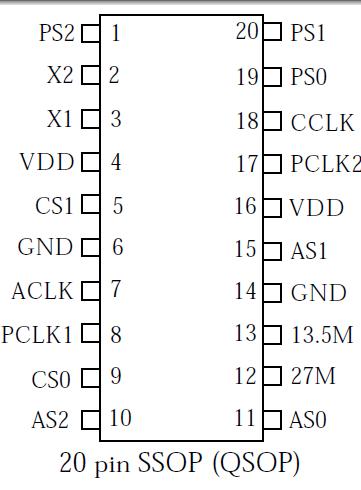

Pinout

Connection Diagram


Specifications

Supply voltage, VDD Referenced to GND
7
V
Inputs and Clock Outputs Referenced to GND
-0.5
VDD+0.5
V
Ambient Operating Temperature
0
70
°C
Soldering Temperature Max of 10 seconds
260
°C
Storage temperature
-65
150
°C



Description

The ICS650-12 is a low cost, low jitter, high performance clock synthesizer designed to produce fixed clock outputs of 13.5 MHz and rocessor Clocks (PCLK1 and PCLK2), Audio Clock (ACLK), and Communications Clock (CCLK). Using our patented analog Phase- Locked Loop (PLL) techniques, the ICS650-12 uses a
27.0 MHz clock or fundamental crystal input to produce clocks ideal for Digital Video/MPEGbased applications.
