ICS650-27

Features: • Packaged in 20-pin (150 mil) SSOP (QSOP)• Available in Pb (lead) free package• 12.5 MHz or 25 MHz fundamental crystal or clock input• Six output clocks with selectable frequencies• SDRAM frequencies of 67, 83, 100, and 133 MHz• Buffered crystal refer...

product image

ICS650-27 Picture
See larger image
SeekIC No. : 004370857 Detail

ICS650-27: Features: • Packaged in 20-pin (150 mil) SSOP (QSOP)• Available in Pb (lead) free package• 12.5 MHz or 25 MHz fundamental crystal or clock input• Six output clocks with selec...

ICS650-27 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ICS650-27
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/18

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Packaged in 20-pin (150 mil) SSOP (QSOP)
• Available in Pb (lead) free package
• 12.5 MHz or 25 MHz fundamental crystal or clock input
• Six output clocks with selectable frequencies
• SDRAM frequencies of 67, 83, 100, and 133 MHz
• Buffered crystal reference output
• Zero ppm synthesis error in all clocks
• Ideal for PMC-Sierra's ATM switch chips
• Full CMOS output swing with 25 mA output drive capability at TTL levels
• Advanced, low-power, sub-micron CMOS process
• Operating voltage of 3.3 V
• Industrial temperature only


Pinout

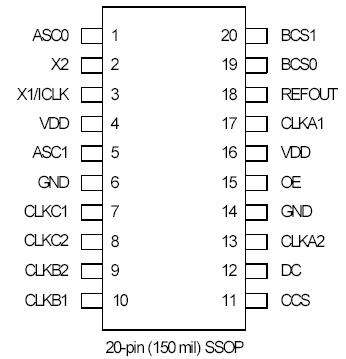

Connection Diagram


Specifications

Item Rating
Supply Voltage, VDD

All Inputs and Outputs

Ambient Operating Temperature

Storage Temperature

Junction Temperature

Soldering Temperature		 7 V

-0.5 V to VDD+0.5 V

-40 to +85°C

-65 to +150°C

175°C

260°C



Description

The ICS650-27 is a low cost, low jitter, high performance clock synthesizer for networking applications. Using analog Phase-Locked Loop (PLL) techniques, the device accepts a 12.5 MHz or 25 MHz clock or fundamental mode crystal input to produce multiple output clocks for networking chips, PCI devices, SDRAM, and ASICs. The ICS650-27 outputs all have zero ppm synthesis error. The ICS650-27 is pin compatible and functionally equivalent to the ICS650-07.

It is a performance upgrade and is recommended for all new 3.3V designs. See the MK74CB214, ICS551, and ICS552-01 for non-PLL buffer devices which produce multiple low-skew copies of these output clocks. See the ICS570, ICS9112-16/17/18 for zero delay buffers that can synchronize outputs and other needed clocks.
