ICS9147-06

Features:

· Generates five processor, eight bus, four 14.31818 MHz, two 48 MHz clocks for USB support and one 24 MHz clock.
· CPU to BUS clock skew 1 to 4ns (CPU early)
· Synchronous clocks skew matched to 250ps window on CPU and 500ps window on BUS.
· Selectable multiplying ratios
· Glitch free stop clock controls CPUEN and BUSEN
· 3.0V - 3.7V supply range, 2.5V to VDD supply range for CPU (1:4) clocks and IOAPIC clock.
· 48-pin SSOP package

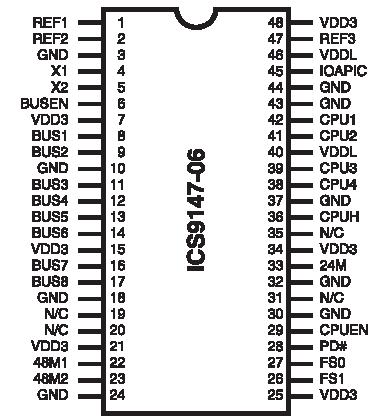

Pinout




Specifications

Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . .  . .  . .  . .  . .  . . 7.0 V
Logic Inputs . . . . . . . . . . . . . . . . . . . . . . .  . GND -0.5 V to VDD +0.5 V
Ambient Operating Temperature . . . . . . . . . . .  .  . .  . 0°C to +70°C
Storage Temperature . . . . . . . . . . . . . . . . . . . .  . . -65°C to +150°C


Description

The ICS9147-06 generates all clocks required for high speed RISC or CISC microprocessor systems such as Intel PentiumPro. Two different reference frequency multiplying factors are externally selectable with smooth frequency transitions. Glitch-free Stop clock control is provided for CPU and BUS clocks. Complete chip low current mode is achieved with the Power Down# pin.

High drive BUS outputs of the ICS9147-06 typically provide greater than 1 V/ns slew rate into 30 pF loads. CPU outputs typically provide better than 1V/ns slew rate into 20 pF loads while maintaining 50±5% duty cycle. The REF and IOAPIC clock outputs typically provide better than 0.5V/ns slew rates. Separate buffer supply pins VDDL allow for nominal 3.3V voltage or reduced voltage swing (from 2.9 to 2.5V) for CPU (1:4) and IOAPIC outputs.
