ICS9342
-
Suppliers
DataSheet
General Description
ICS9342 Maximum Ratings
Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7.0 V
Logic Inputs . . . . . . . . . . . . . .GND 0.5 V to VDD +0.5 V
Ambient Operating Temperature . . . . .-40°C to +85°C
Storage Temperature . . . . . . . . . . . 65°C to +150°C
Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. These ratings are stress specifications only and functional operation of the device at these or any other conditions above those listed in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect product reliability.
ICS9342 Features
• Up to 146MHz frequency support
• Support power management: CPU, PCI stop and power down mode.
• Spread spectrum for EMI control (0 to -0.5%, ± 0.25%).
• Uses external 14.318MHz crystal
• FS pins for frequency select
• Support for industrial temperature range (-40C° to 85C°)
• Support power management: CPU, PCI stop and power down mode.
• Spread spectrum for EMI control (0 to -0.5%, ± 0.25%).
• Uses external 14.318MHz crystal
• FS pins for frequency select
• Support for industrial temperature range (-40C° to 85C°)

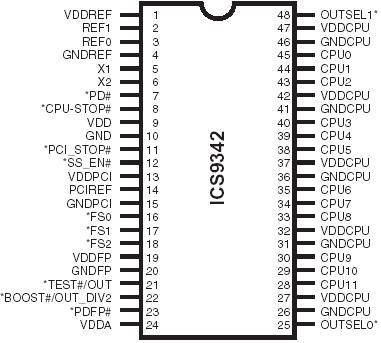

ICS9342 Connection Diagram
ICS9342yF-T
