Purchase ICS952001, In-stock ICS952001 From SeekIC.
Package Cooled:SOP
- Table of contents:
ICS952001
-
Suppliers
DataSheet
General Description
ICS952001 Maximum Ratings
Core Supply Voltage . . . . . . . . . . . . . . . . . . . . . . 4.6 V
I/O Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . 3.6V
Logic Inputs . . . . . . . . . . . . GND 0.5 V to VDD +0.5 V
Ambient Operating Temperature . . . . . 0°C to +70°C
Storage Temperature . . . . . . . . . . 65°C to +150°C
Case Temperature . . . . . . . . . . . . . . . . . . . . . . 115°C
Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. These ratings are stress specifications only and functional operation of the device at these or any other conditions above those listed in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect product reliability.
ICS952001 Features
• Programmable output frequency, divider ratios, output rise/falltime, output skew.
• Programmable spread percentage for EMI control.
• Watchdog timer technology to reset system if system malfunctions.
• Programmable watch dog safe frequency.
• Support I2C Index read/write and block read/write operations.
• For PC133 SDRAM system use the ICS9179-06 as the memory buffer.
• For DDR SDRAM system use the ICS93705 or ICS93722 as the memory buffer.
• Uses external 14.318MHz crystal.
• Programmable spread percentage for EMI control.
• Watchdog timer technology to reset system if system malfunctions.
• Programmable watch dog safe frequency.
• Support I2C Index read/write and block read/write operations.
• For PC133 SDRAM system use the ICS9179-06 as the memory buffer.
• For DDR SDRAM system use the ICS93705 or ICS93722 as the memory buffer.
• Uses external 14.318MHz crystal.

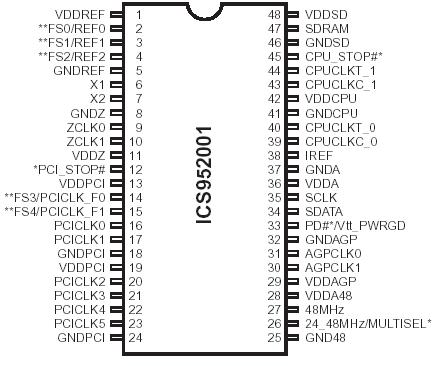

ICS952001 Connection Diagram
ICS952001
PDF/DataSheet Download
- Datasheet: ICS952001
- File Size: 217331 KB
- Manufacturer: ICST [Integrated Circuit Systems]
- Click here to Download
