ICS98ULPA877A Maximum Ratings
Supply Voltage (VDDQ & AVDD) . . . . . . . . . . . . -0.5V to 2.5V
Logic Inputs . . . . . . . . . . . . . . . . GND - 0.5V to VDDQ + 0.5V
Ambient Operating Temperature . . . . . . . . . -40°C to +85°C
Storage Temperature . . . . . . . . . . . . . . . . .-65°C to +150°C
ICS98ULPA877A Features
• Low skew, low jitter PLL clock driver
• 1 to 10 differential clock distribution (SSTL_18)
• Feedback pins for input to output synchronization
• Spread Spectrum tolerant inputs
• Auto PD when input signal is at a certain logic state
ICS98ULPA877A Typical Application
• DDR2 Memory Modules / Zero Delay Board Fan Out
• Provides complete DDR2 DIMM logic solution

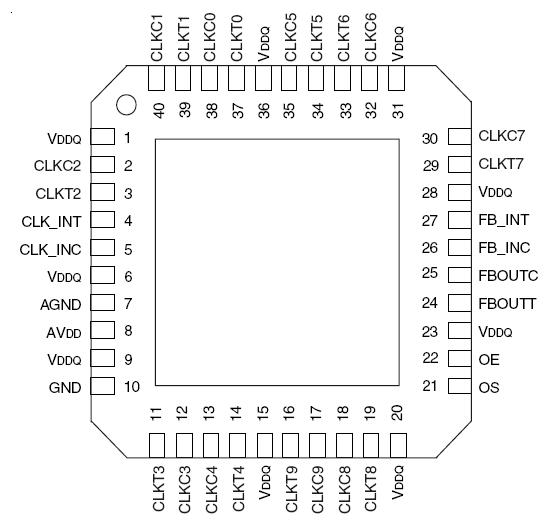

ICS98ULPA877A Connection Diagram
