Part Number: ICX209AKB
Description: The ICX209AKB is an interline CCD solid-state image sensor suitable for PAL color video cameras.Compar...
- Table of contents:
ICX209AKB
-
Suppliers
DataSheet
General Description
ICX209AKB General Description
The ICX209AKB is an interline CCD solid-state image sensor suitable for PAL color video cameras.Compared with the current product ICX069AKB,sensitivity and saturation signal are improved drastically through the adoption of Super HAD CCD technology.High resolution is achieved through the use of Ye,Cy, Mg, and G complementary color mosaic filters.
This chip features a field period readout system and an electronic shutter with variable charge-storage time.
Also, this outline is miniaturized by using original package.
ICX209AKB Maximum Ratings
|
Item |
Ratings |
Unit |
Remarks | |
| Against SUB | VDD, VOUT, RG SUB |
40 to +8 |
V |
|
| V1, V3 SUB |
50 to +15 |
V |
||
| V2, V4, VL SUB |
50to +0.3 |
V |
||
| H1, H2, GND SUB |
40to +0.3 |
V |
||
| Against GND | VDD, VOUT, RG GND |
0.3 to +18 |
V |
|
| V1, V2, V3, V4 GND |
10 to +18 |
V |
||
| H1, H2 GND |
10to +6 |
V |
||
| Against VL | V1, V3 VL |
0.3 to +28 |
V |
|
| V2, V4, H1, H2, GND VL |
0.3 to +15 |
V |
||
|
Between input clock pins |
Voltage difference between vertical clock input pins |
to +15 |
V |
*1 |
| H1 H2 |
5 to +5 |
V |
||
| H1, H2 V4 |
13 to +13 |
V |
||
| Storage temperature |
30 to +80 |
|||
| Operating temperature |
10 to +60 |
|||
ICX209AKB Features
• Maximum package dimensions: f8mm
• High sensitivity (+4dB compared with ICX069AKB)
• High saturation signal (+2.5dB compared with ICX069AKB)
• Horizontal register: 3.3 to 5.0V drive
• Reset gate: 3.3 to 5.0V drive
• No voltage adjustment (Reset gate and substrate bias are not adjusted.)
• High resolution, low smear and low dark current
• Excellent antiblooming characteristics
• Continuous variable-speed shutter
• Recommended range of exit pupil distance: 20 to 100mm
• Ye, Cy, Mg, and G complementary color mosaic filters on chip
• High sensitivity (+4dB compared with ICX069AKB)
• High saturation signal (+2.5dB compared with ICX069AKB)
• Horizontal register: 3.3 to 5.0V drive
• Reset gate: 3.3 to 5.0V drive
• No voltage adjustment (Reset gate and substrate bias are not adjusted.)
• High resolution, low smear and low dark current
• Excellent antiblooming characteristics
• Continuous variable-speed shutter
• Recommended range of exit pupil distance: 20 to 100mm
• Ye, Cy, Mg, and G complementary color mosaic filters on chip

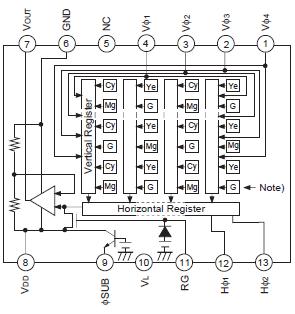

ICX209AKB Connection Diagram
ICX209AKB
PDF/DataSheet Download
- Datasheet: ICX209AKB
- File Size: 200090 KB
- Manufacturer: SONY [Sony Corporation]
- Click here to Download
