MFG:SONY Package Cooled:DIP D/C:05+
MFG: SONY
Package Cooled: DIP
D/C: 05+

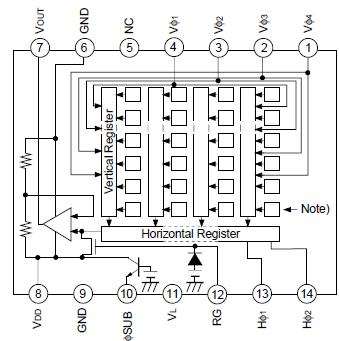

Description: The ICX229AL is an interline CCD solid-state image sensor suitable for CCIR B/W video cameras.Compared...
The ICX229AL is an interline CCD solid-state image sensor suitable for CCIR B/W video cameras.Compared with the current product ICX209AL, smear charactristics are improved drastically and power consumption is reduced. High sensitivity and high saturation signal are achieved by Super HAD CCD technology.
This chip features a field period readout system and an electronic shutter with variable charge-storage time.
The package is a 10mm-square 14-pin DIP (Plastic).
|
Item |
Ratings |
Unit |
Remarks | |
| Against SUB | VDD, VOUT, RGSUB |
32 to +12 |
V |
|
| V1, V3 SUB |
40 to +15 |
V |
||
| V2, V4, VL SUB |
40 to +0.3 |
V |
||
| H1, H2, GND SUB |
32 to +0.3 |
V |
||
| Against GND | VDD, VOUT, RG GND |
0.3 to +17 |
V |
|
| V1, V2, V3, V4 GND |
7 to +14 |
V |
||
| H1, H2 GND |
7 to +4.2 |
V |
||
| Against VL | V1, V3 VL |
0.3 to +21 |
V |
|
| V2, V4, H1, H2, GND VL |
0.3 to +12 |
V |
||
| Between input clock pins |
Voltage difference between vertical clock input pins |
to +12 |
V |
*1 |
| H1H2 |
5 to +5 |
V |
||
| H1, H2V4 |
12 to +12 |
V |
||
| Storage temperature |
30 to +80 |
|||
| Operating temperature |
10 to +60 |
|||
ICX229AL
PDF/DataSheet Download
The ICX229AK is an interline CCD solid-state image sensor suitable for PAL color video cameras. Compared with the current product ICX209AK, smear charactristics are improved drastically and power consumption is reduced. High resolution is achieved through th...
The ICX228AL is an interline CCD solid-state image sensor suitable for EIA B/W video cameras.Compared with the current product ICX208AL, smear charactristics are improved drastically and power consumption is reduced. High sensitivity and high saturation sign...
The ICX228AK is an interline CCD solid-state image sensor suitable for NTSC color video cameras.Compared with the current product ICX208AK,smear charactristics are improved drastically and power consumption is reduced. High resolution is achieved through the...
The ICX227AL is an interline CCD solid-state image sensor suitable for CCIR B/W video cameras.Compared with the current product ICX207AL, smear charactristics are improved drastically and power consumption is reduced. High sensitivity and high saturation sig...
The ICX227AK is an interline CCD solid-state image sensor suitable for PAL color video cameras. Compared with the current product ICX207AK, smear charactristics are improved drastically and power consumption is reduced. Ye, Cy, Mg, and G complementary color ...
The ICX226AL is an interline CCD solid-state image sensor suitable for EIA B/W video cameras. Compared with the current product ICX206AL, smear charactristics are improved drastically and power consumption is reduced. High sensitivity and high saturation sig...
