General Description
ICX252AKF General Description
The ICX252AKF is a diagonal 8.933mm (Type 1/1.8) interline CCD solid-state image sensor with a square pixel array and 3.24M effective pixels. Frame readout allows all pixels' signals to be output independently within approximately 1/4.28 second. Also, number of vertical pixels decimation allows output of 30 frames per second in high frame rate readout mode. Ye, Cy, Mg, G complementary color mosaic filters are used as the color filters, and at the same time high sensitivity and low dark current are achieved through the adoption of Super HAD CCD technology.
This chip is suitable for applications such as electronic still cameras, etc.
ICX252AKF Maximum Ratings
|
Item |
Ratings | Unit | Remarks | |
| Against SUB | VDD, VOUT, RG SUB | 40 to +12 | V | |
| V1A, V1B, V3A, V3B SUB | 50 to +15 | V | ||
| V2, V4, VL SUB | 50 to +0.3 | V | ||
| H1, H2, GND SUB | 40 to +0.3 | V | ||
| CSUB SUB | 25 to | V | ||
| Against GND | VDD, VOUT, RG, CSUB GND | 0.3 to +22 | V | |
| V1A, V1B, V2, V3A, V3B, V4 GND | 10 to +18 | V | ||
| H1, H2 GND | 10 to +6.5 | V | ||
|
Against VL |
V1A, V1B, V3A, V3B VL | 0.3 to +28 | V | |
| V2, V4, H1, H2, GND VL | 0.3 to +15 | V | ||
| Between input clock pins |
Voltage difference between vertical clock input pins | to +15 | V | *1 |
| H1 H2 | 6.5 to +6.5 | V | ||
| H1, H2 V4 | 10 to +16 | V | ||
| Storage temperature | 30 to +80 | °C | ||
| Guaranteed temperature of performance | 10 to +60 | °C | ||
| Operating temperature | 10 to +75 | °C | ||
+16V (Max.) is guaranteed for turning on or off power supply.
ICX252AKF Features
• Supports frame readout
• High horizontal and vertical resolution
• Supports high frame rate readout mode: 30 frames/s,
AF1 mode: 60 frames/s, 50 frames/s,
AF2 mode: 120 frames/s, 100 frames/s
• Square pixel
• Horizontal drive frequency: 18MHz
• No voltage adjustments (reset gate and substrate bias are not adjusted.)
• Ye, Cy, Mg, G complementary color mosaic filters on chip
• High sensitivity, low dark current
• Continuous variable-speed shutter
• Excellent anti-blooming characteristics
• 20-pin high-precision plastic package
• High horizontal and vertical resolution
• Supports high frame rate readout mode: 30 frames/s,
AF1 mode: 60 frames/s, 50 frames/s,
AF2 mode: 120 frames/s, 100 frames/s
• Square pixel
• Horizontal drive frequency: 18MHz
• No voltage adjustments (reset gate and substrate bias are not adjusted.)
• Ye, Cy, Mg, G complementary color mosaic filters on chip
• High sensitivity, low dark current
• Continuous variable-speed shutter
• Excellent anti-blooming characteristics
• 20-pin high-precision plastic package

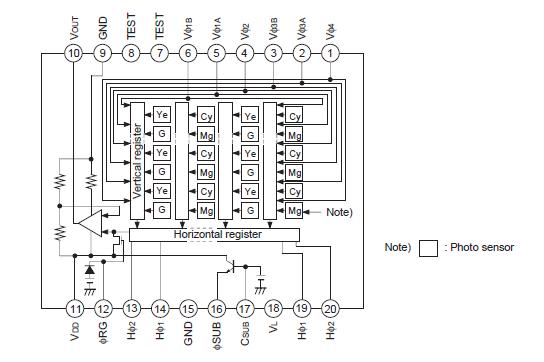

ICX252AKF Connection Diagram
ICX252AKF
PDF/DataSheet Download
- Datasheet: ICX252AKF
- File Size: 494210 KB
- Manufacturer: SONY [Sony Corporation]
- Click here to Download
