Part Number: ICX282AKF
Description: The ICX282AKF is a diagonal 11mm (Type 2/3) interline CCD solid-state image sensor with a square pixel...
- Table of contents:
ICX282AKF
-
Suppliers
DataSheet
General Description
ICX282AKF General Description
The ICX282AKF is a diagonal 11mm (Type 2/3) interline CCD solid-state image sensor with a square pixel array and 5.07M effective pixels. Frame readout allows all pixels' signals to be output independently within approximately 1/3.75 second. In addition, output is possible using various addition and pulse elimination methods. This chip features an electronic shutter with variable charge-storage time. Adoption of a design specially suited for frame readout ensures a saturation signal level equivalent to that when using field readout.High resolution and high color reproductively are achieved through the use of Ye, Cy, Mg and G complementary color mosaic filters as the color filters.Further, high sensitivity and low dark current are achieved through the adoption of Super HAD CCD technology.
This chip is suitable for applications such as electronic still cameras, PC input cameras, etc.
ICX282AKF Maximum Ratings
|
Item |
Ratings |
Unit |
Remarks | |
| Against SUB | VDD, VOUT, RG SUB |
40 to +12 |
V |
|
| V1, V3 SUB ( =AtoC) |
50 to +15 |
V |
||
| V2, V4, VL SUB |
50 to +0.3 |
V |
||
| H1, H2, GND SUB ( = A,B) |
40 to +0.3 |
V |
||
| CSUB SUB |
25 to |
V |
||
| Against GND | VDD, VOUT, RG, CSUB GND |
0.3 to +22 |
V |
|
| V1, V2, V3, V4 GND (=AtoC) |
10 to +18 |
V |
||
| H1, H2 GND ( = A, B) |
10 to +6.5 |
V |
||
| Against VL | V1, V3 VL ( = A to C) |
0.3 to +28 |
V |
|
| V2, V4, H1,H2,GNDVL(=A, B) |
0.3 to +15 |
V |
||
+16V (Max.) is guaranteed for turning on or off power supply.
ICX282AKF Features
• High horizontal and vertical resolution
• Supports 10 types of readout modes
Frame readout mode, 2× speed mode (1), 2× speed mode (2), 8× speed mode,center scan mode (1), center scan mode (2), center scan mode (3),center scan mode (4), AF mode (1), AF mode (2)
• Square pixel
• Horizontal drive frequency: 22.5MHz
• No voltage adjustments (reset gate and substrate bias are not adjusted.)
• Ye, Cy, Mg and G complementary color mosaic filters on chip
• High sensitivity, low dark current, excellent anti-blooming characteristics
• Continuous variable-speed shutter
• Horizontal register, reset gate: 3.3V drive
• 24-pin high-precision plastic package
• Supports 10 types of readout modes
Frame readout mode, 2× speed mode (1), 2× speed mode (2), 8× speed mode,center scan mode (1), center scan mode (2), center scan mode (3),center scan mode (4), AF mode (1), AF mode (2)
• Square pixel
• Horizontal drive frequency: 22.5MHz
• No voltage adjustments (reset gate and substrate bias are not adjusted.)
• Ye, Cy, Mg and G complementary color mosaic filters on chip
• High sensitivity, low dark current, excellent anti-blooming characteristics
• Continuous variable-speed shutter
• Horizontal register, reset gate: 3.3V drive
• 24-pin high-precision plastic package

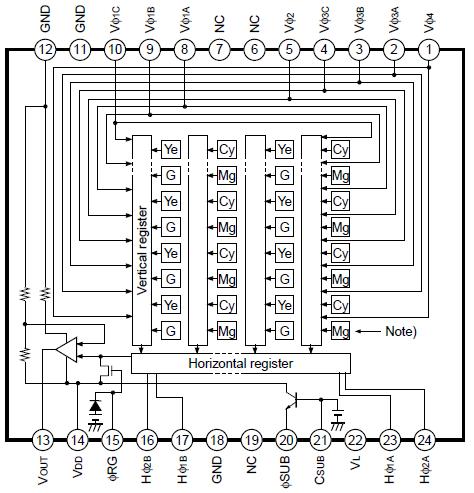

ICX282AKF Connection Diagram
ICX282AKF
PDF/DataSheet Download
- Datasheet: ICX282AKF
- File Size: 538675 KB
- Manufacturer: SONY [Sony Corporation]
- Click here to Download
