Features:

• Progressive scan allows individual readout of the image signals from all pixels.
• High horizontal and vertical resolution (both approximately 800TV-lines) still images without a mechanical shutter
• Supports high frame rate readout mode (effective 256 lines output, 60 frames/s)
• Square pixel
• Aspect ratio : 4:3
• Horizontal drive frequency: 28.64MHz
• R, G, B primary color mosaic filters on chip
• High sensitivity, low smear
• Low dark current, excellent anti-blooming characteristics
• Continuous variable-speed shutter function
• Horizontal register: 5.0V drive


Pinout

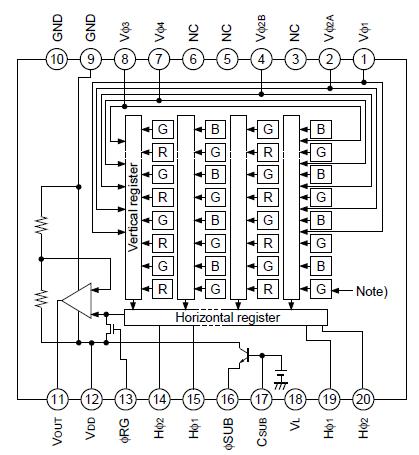

Connection Diagram


Specifications

Item
Ratings
Unit
Remarks
Against SUB VDD, VOUT, RG SUB
40 to +12
V
V2A, V2B SUB
50 to +15
V
V1, V3, V4, VL SUB
50 to +0.3
V
H1, H2, GND SUB
40 to +0.3
V
CSUB SUB
25 to
V
Against GND VDD, VOUT, RG, CSUB GND
0.3 to +22
V
V1, V2A, V2B, V3, V4 GND
10 to +18
V
H1, H2 GND
10 to +6.5
V
Against VL V2A, V2B VL
0.3 to +28
V
V1, V3, V4, H1, H2, GND VL
0.3 to +15
V
Between input
clock pins		 Voltage difference between vertical clock input pins
to +15
V
*1
H1 H2
6.5 to +6.5
V
H1, H2 V4
10 to +16
V
Storage temperature
30 to +80
Guaranteed temperature of performance
10 to +60
Operating temperature
10 to +75
∗1 +24V (Max.) when clock width < 10s, clock duty factor < 0.1%.
+16V (Max.) is guaranteed for turning on or off power supply.


Description

The ICX285AQ is a diagonal 11mm (Type 2/3) interline CCD solid-state image sensor with a square pixel array. High sensitivity and low smear are achieved through the adoption of EXview HAD CCD technology. Progressive scan allows all pixels' signals to be output independently within approximately 1/15 second. Also, the adoption of high frame rate readout mode supports 60 frames per second. This chip features an electronic shutter with variable charge-storage time which makes it possible to realize full-frame still images without a mechanical shutter.High resolution and high color reproductively are achieved through the use of R, G, B primary color mosaic filters.

This chip of the ICX285AQ is suitable for image input applications such as still cameras which requires high resolution,etc.
