IC Converts PS

Features: • Interfaces PS/2 devices to USB• Devices are hot-pluggable• Provides two PS/2 ports• PS/2 ports support MouseWheel functionality• PS/2 ports are auto-selectable and hot-swappable the mouse or keyboard can be used in either port• Works with standard W...

product image

IC Converts PS Picture
See larger image
SeekIC No. : 004370310 Detail

IC Converts PS: Features: • Interfaces PS/2 devices to USB• Devices are hot-pluggable• Provides two PS/2 ports• PS/2 ports support MouseWheel functionality• PS/2 ports are auto-selecta...

IC Converts PS Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IC Converts PS
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/2

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Interfaces PS/2 devices to USB
• Devices are hot-pluggable
• Provides two PS/2 ports
• PS/2 ports support MouseWheel functionality
• PS/2 ports are auto-selectable and hot-swappable the mouse or keyboard can be used in either port
• Works with standard Windows 98 keyboard and mouse drivers
• Easy to implement
• Few external components required


Application

• System Legacy Support


Pinout

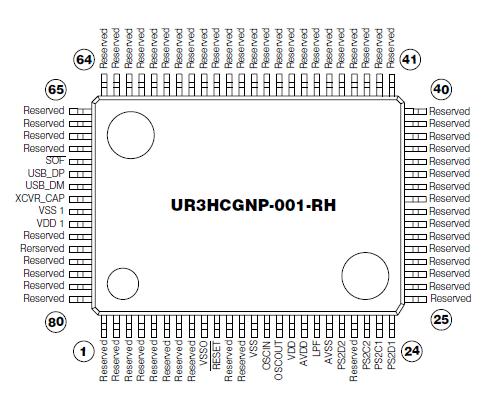

Connection Diagram


Specifications

Ratings
Symbol
Value
Unit
Supply Voltage
Vdd
-0.3 to 7.0
V
Input Voltage
Vin
Vss -0.3 to Vdd +0.3
V
Input Voltage USB D+, D-
Vin USB
-0.5 to +3.8
V
Operating Temperature
UR3HCGNP-001-RH
Ta
T low to T high
-20 to +85
° C
° C
Storage Temperature Range
Tstg
-40 to +125
° C



Description

The IC Converts PS is a single IC that converts PS/2 keyboard and mouse data to USB. The GeniPS2TM is ideal for system legacy support, enabling seamless connection of standard PS/2 devices (mice or keyboards) to USB.

The IC of the IC Converts PS offers two hot-pluggable and hot-swappable PS/2 ports; either port can accept a mouse or a keyboard. In addition, the GeniPS2TM auto-detects and transparently supports mice with MouseWheel functionality. Internal and external mouse and keyboard data are streamed and appear to the system as if coming from a single source.

The IC Converts PS supports remote wake-up function via either mouse or keyboard, if the BIOS of the host machine is configured in this manner.

In addition, the IC Converts PS supports a multitude of languages, including Korean and Japanese.
