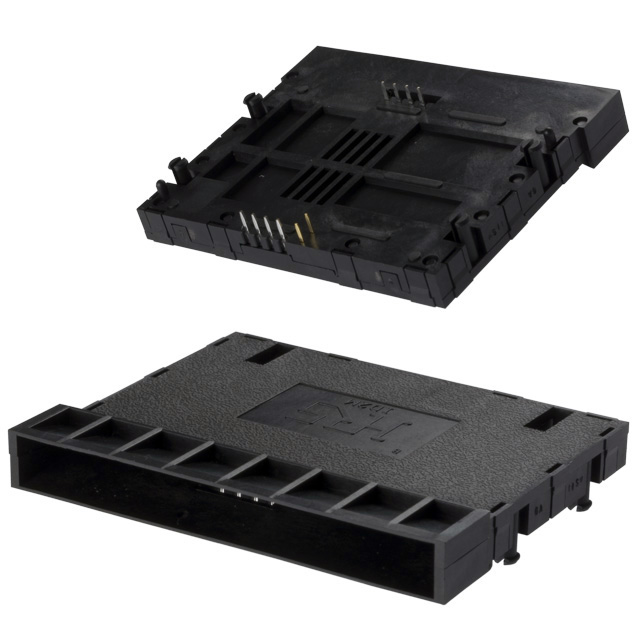

ID2M

1. Suited to Smart Cards Conforming to
ISO-7816 Smart cards feature a high level of reliability in terms of ecurity when compared to contemporary credit cards and so these cards will be indispensable in the anticipated systems of the future such as settlement of accounts.The rapid worldwide growth seen in digital satellite broadcasting also makes use of these smart cards, which are used in the associated fee payment system. The ID2M Series of smart card sokets were developed for use with these digital satellite broadcast receiver (IRD) and are considered to be userfriendly. These smart card sockets can be used in a wide range of applications.
2. Eight Contacts
Sockets are available with 8 contacts only, in conformity with ISO-7816
3. Equipped with a Card Detection Switch
A switch that detects whether the smart card has been inserted securely prevents erroneous operation. This swich will be set to OFF(i.e., the nonconducting condition) when the smart card has been inserted all the way.
4. Excellent Detection Switch Construction
• The distance from the dip post to the contact has been extended to form a contact shape that is not susceptible to tje adherence of flux.
• A 2-point contact structure using two springs improves contact reliabilty.
• The smart card holding structure keeps cards in place and prevents erroneous operation of the detecion swich due to light shocks and vibration.Taking into account inadvertent card
removal,the design also features a spring-shaped portion on top of the housing that holds the card.
5. Large Insertion Slot
The insertion slot for the smart card has been made large to improve ease of use.
6. Equipped with a Board Provisional
This socket has s fastening boss for 1.6mm thich boards, a design feature that keeps boards in place at time of mounting.
7. Insertion/Removal Guarantee of 10,000 Times
