General Description
IDT29FCT52C General Description
The IDT29FCT52A/B/C and IDT29FCT53A/B/C are 8-bit registered transceivers manufactured using an advanced dual metal CMOS technology. Two 8-bit back-to-back registers store data flowing in both directions between two bidirectional buses. Separate clock, clock enable and 3-state output enable signals are provided for each register. Both A outputs and B outputs are guaranteed to sink 64mA.
The IDT29FCT52A/B/C is a non-inverting option of the IDT29FCT53A/B/C.
IDT29FCT52C Maximum Ratings
| Symbol | Rating | Commercial | Military | Unit |
| VTERM(2) | Terminal Voltage with Respect to GND | 0.5 to +7.0 | 0.5 to +7.0 | V |
| VTERM(3) | Terminal Voltage with Respect to GND | 0.5 to VCC | 0.5 to VCC | V |
| TA | Operating Temperature | 0 to +70 | 55 to +125 | °C |
| TBIAS |
Temperature |
55 to +125 | 65 to +135 | °C |
| TSTG | Storage Temperature |
55 to +125 | 65 to +150 | °C |
| PT | Power Dissipation | 0.5 | 0.5 | W |
| IOUT | DC Output Current | 120 | 120 | mA |
IDT29FCT52C Features
• Equivalent to AMD's Am2952/53 and National's 29F52/53 in pinout/function
• IDT29FCT52A/53A equivalent to FASTÔ speed
• IDT29FCT52B/53B 25% faster than FAST
• IDT29FCT52C/53C 37% faster than FAST
• IOL = 64mA (commercial) and 48mA (military)
• IIH and IIL only 5 A max.
• CMOS power levels (2.5mW typ. static)
• TTL input and output level compatible
• CMOS output level compatible
• Available in 24-pin DIP, SOIC, 28-pin LCC with JEDEC standard pinout
• Product available in Radiation Tolerant and Radiation Enhanced versions
• Military product compliant to MIL-STD-883, Class B
• IDT29FCT52A/53A equivalent to FASTÔ speed
• IDT29FCT52B/53B 25% faster than FAST
• IDT29FCT52C/53C 37% faster than FAST
• IOL = 64mA (commercial) and 48mA (military)
• IIH and IIL only 5 A max.
• CMOS power levels (2.5mW typ. static)
• TTL input and output level compatible
• CMOS output level compatible
• Available in 24-pin DIP, SOIC, 28-pin LCC with JEDEC standard pinout
• Product available in Radiation Tolerant and Radiation Enhanced versions
• Military product compliant to MIL-STD-883, Class B

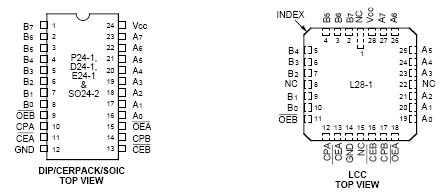

IDT29FCT52C Connection Diagram
