IDT7006S/L

The IDT7006S/L is a high-speed 16K x 8 Dual-Port Static RAM.  The IDT7006 is designed to be used as a stand-alone Dual-Port RAM or as a combination MASTER/SLAVE Dual- Port RAM for 16-bit-or-more word systems.  Using the IDT MASTER/SLAVE Dual-Port RAM approach in 16-bit or wider memory system applications results in full-speed, error-free operation without the need for additional discrete logic.

This IDT7006S/L provides two independent ports with separate control, address, and I/O pins that permit independent, asynchronous access for reads or writes to any location in memory.  An automatic power down feature controlled by CEpermits the on-chip circuitry of each port to enter a very low standby power mode.

Fabricated using IDT's CMOS high-performance technol-ogy, these devices typically operate on only 750mW of power.Low-power (L) versions offer battery backup data retention capability with typical power consumption of 500µW from a 2V battery.

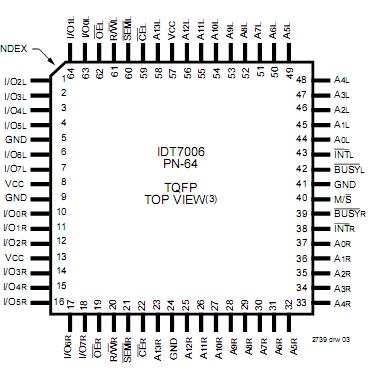

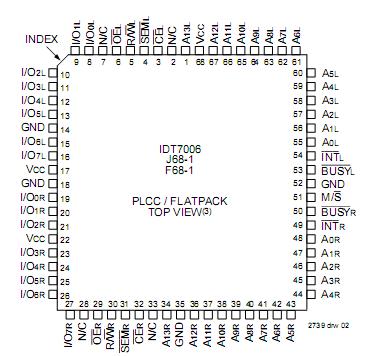

The IDT7006S/L is packaged in a ceramic 68-pin PGA,  a 68-pin quad flatpack, a 68-pin PLCC, and a 64-pin TQFP (thin plastic quad flatpack) .  Military grade product is manufactured in compliance with the latest revision of MIL-STD-883, Class B, making it ideally suited to military temperature applications demanding the highest level of performance and reliability.
