IDT70121S/L
-
Suppliers
DataSheet
General Description
IDT70121S/L General Description
The IDT70121/IDT70125 are high-speed 2K x 9 Dual-Port Static RAMs. The IDT70121 is designed to be used as a stand-alone 9-bit Dual- Port RAM or as a ìMASTERî Dual-Port RAM together with the IDT70125 ìSLAVEî Dual-Port in 18-bit-or-more word width systems. Using the IDT MASTER/SLAVE Dual-Port RAM approach in 18-bit-or-wider memory system applications results in full-speed, error-free operation without the need for additional discrete logic.
IDT70121S/L Maximum Ratings
|
Symbol |
Rating |
Com'l & Ind'l
|
Unit |
Military |
|
VTERM |
Terminal Voltage with respect to GND |
0.5 to +4.5 |
V |
-0.5 to +7.0 |
|
TSTG |
Temperature Under Bias |
55 to +125 |
°C |
-65 to +135 |
|
TSTG |
Storage Temperature |
50 to +50
|
mA |
-65 to +150 |
|
IOUT |
DC Output Current |
50
|
mA |
50 |
IDT70121S/L Features
High-speed access
--Commercial: 25/35/45/55ns (max.)
Low-power operation
--IDT70121/70125S
Active: 675mW (typ.)
Standby: 5mW (typ.)
-- IDT70121/70125L
Active: 675mW (typ.)
Standby: 1mW (typ.)
Fully asychronous operation from either port
MASTER IDT70121 easily expands data bus width to 18 bits or more using SLAVE IDT70125 chip
On-chip port arbitration logic (IDT70121 only)
BUSY output flag on Master; BUSY input on Slave
INT flag for port-to-port communication
Battery backup operationó2V data retention
TTL-compatible, signal 5V (±10%) power supply
Available in 52-pin PLCC
Industrial temperature range (ñ40°C to +85°C) is available for selected speeds
--Commercial: 25/35/45/55ns (max.)
Low-power operation
--IDT70121/70125S
Active: 675mW (typ.)
Standby: 5mW (typ.)
-- IDT70121/70125L
Active: 675mW (typ.)
Standby: 1mW (typ.)
Fully asychronous operation from either port
MASTER IDT70121 easily expands data bus width to 18 bits or more using SLAVE IDT70125 chip
On-chip port arbitration logic (IDT70121 only)
BUSY output flag on Master; BUSY input on Slave
INT flag for port-to-port communication
Battery backup operationó2V data retention
TTL-compatible, signal 5V (±10%) power supply
Available in 52-pin PLCC
Industrial temperature range (ñ40°C to +85°C) is available for selected speeds

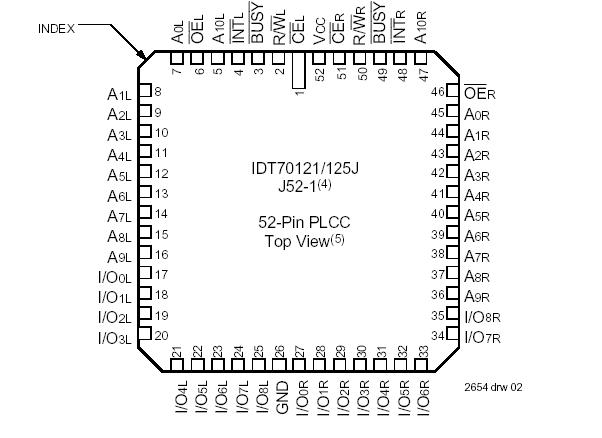

IDT70121S/L Connection Diagram
NOTES:
1. All VCC pins must be connected to power supply.
2. All GND pins must be connected to ground supply.
3. Package body is approximately .75 in x .75 in x .17 in.
4. This package code is used to reference the package diagram.
5. This text does not indicate orientation of the actual part-marking.
