IDT7014S

Features: • True Dual-Ported memory cells which allow simultaneous access of the same memory location• High-speed access - Military: 20/25/35ns (max.)- Commercial: 12/15/20/25ns (max.)• Low-power operation - IDT7014S Active: 900mW (typ.)• Fully asynchronous operation from e...

product image

IDT7014S Picture
See larger image
SeekIC No. : 004371996 Detail

IDT7014S: Features: • True Dual-Ported memory cells which allow simultaneous access of the same memory location• High-speed access - Military: 20/25/35ns (max.)- Commercial: 12/15/20/25ns (max.)&#...

IDT7014S Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IDT7014S
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• True Dual-Ported memory cells which allow simultaneous access of the same memory location
• High-speed access
        - Military:  20/25/35ns (max.)
        - Commercial:  12/15/20/25ns (max.)
• Low-power operation
        - IDT7014S
            Active:  900mW (typ.)
• Fully asynchronous operation from either port
• TTL-compatible; single 5V (±10%) power supply
• Available in 52-pin PLCC and a 64-pin TQFP
• Industrial temperature range (40°C to +85°C) is available, tested to military electrical specifications


Pinout

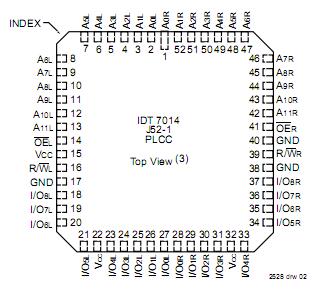

Connection Diagram


Specifications

Symbol
Rating
Commercial

Military
Unit
VTERM(2)
Terminal Voltage with Respect to GND
-0.5 to +7.0
-0.5 to +7.0
V
VTERM(3)
Terminal Voltage
-0.5 to VCC
-0.5 to VCC
V
TA
Operating Temperature
0 to +70
55 to +125
°C
TBIAS
Temperature Under Bias
55 to +125
-65 to +135
°C
TSTG
Storage Temperature
55 to +125
-65 to +150
°C
IOUT
DC Output Current
50
50
mA




Description

The IDT7014S is an extremely high-speed 4K x 9 Dual-Port Static RAM designed to be used in systems where on-chip
hardware port arbitration is not needed.  This part  lends itself to high-speed applications which do not need on-chip arbitration to manage simultaneous access.

The IDT7014S provides two independent ports with separate control, address, and I/O pins that permit independent,
asynchronous access for reads or writes to any location in memory. See functional description.

The IDT7014S utilitizes a 9-bit wide data path to allow for parity at the user's option.  This feature is especially  useful in data communication applications where it is necessary to use a parity bit for transmission/reception error checking.

Fabricated using IDT's high-performance  technology, the IDT7014 Dual-Ports typically operate on only 900mW of power at maximum access times as fast as 12ns.

The IDT7014S is packaged in a 52-pin PLCC and a 64-pin thin plastic quad flatpack (TQFP).
