Part Number: IDT70V08S
Description: The IDT70V08 is a high-speed 64K x 8 Dual-Port Static RAM. The IDT70V08 is designed to be used as a stand-alone 5...
- Table of contents:
IDT70V08S
-
Suppliers
DataSheet
General Description
IDT70V08S General Description
The IDT70V08 is a high-speed 64K x 8 Dual-Port Static RAM. The IDT70V08 is designed to be used as a stand-alone 512K-bit Dual-Port RAM or as a combination MASTER/SLAVE Dual-Port RAM for 16-bit-or-more word system. Using the IDT MASTER/SLAVE Dual-Port RAM approach in 16-bit or wider memory system applications results in full-speed, error-free operation without the need for additional discrete logic.
This device provides two independent ports with separate control, address, and I/O pins that permit independent, asynchronous access for reads or writes to any location in memory. An automatic power down feature controlled by the chip enables (either CE 0 or CE1) permit the on-chip circuitry of each port to enter a very low standby power mode.
Fabricated using IDT's CMOS high-performance technology, these devices typically operate on only 550mW of power.
The IDT70V08 is packaged in a 100-pin Thin Quad Flatpack (TQFP).
IDT70V08S Maximum Ratings
|
Symbol |
Rating |
Commercial & Industrial |
Unit |
| VTERM(2) |
Terminal Voltage with Respect to GND |
-0.5 to +4.6 |
V |
| TBIAS | Temperature Under Bias |
-55 to +125 |
o C |
| TSTG | Storage Te mp e ra ture |
-65 to +150 |
o C |
| IOUT | DC Output Current |
50 |
mA |
NOTES:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
2. VTERM must not exceed Vcc + 0.3V for more than 25% of the cycle time or 10ns maximum, and is limited to < 20mA for the period of VTERM > Vcc + 0.3V.
IDT70V08S Features
True Dual-Ported memory cells which allow simultaneous
access of the same memory location
High-speed access
Commercial: 15/20/25/35ns (max.)
Low-power operation
IDT70V08S
Active: 550mW (typ.)
Standby: 5mW (typ.)
IDT70V08L
Active: 550mW (typ.)
Standby: 1mW (typ.)
Dual chip enables allow for depth expansion without
external
IDT70V08 easily expands data bus width to 16 bits or
more using the Master/Slave select when cascading more
than one device
M/S = VIH for BUSY output flag on Master,
M/S = VIL forBUSY input on Slave
Busy and Interrupt Flags
On-chip port arbitration logic
Full on-chip hardware support of semaphore signaling
between ports
Fully asynchronous operation from either port
LVTTL-compatible, single 3.3V (±0.3V) power supply
Available in a 100-pin TQFP
Industrial temperature range (40°C to +85°C) is available
for selected speeds
access of the same memory location
High-speed access
Commercial: 15/20/25/35ns (max.)
Low-power operation
IDT70V08S
Active: 550mW (typ.)
Standby: 5mW (typ.)
IDT70V08L
Active: 550mW (typ.)
Standby: 1mW (typ.)
Dual chip enables allow for depth expansion without
external
IDT70V08 easily expands data bus width to 16 bits or
more using the Master/Slave select when cascading more
than one device
M/S = VIH for BUSY output flag on Master,
M/S = VIL forBUSY input on Slave
Busy and Interrupt Flags
On-chip port arbitration logic
Full on-chip hardware support of semaphore signaling
between ports
Fully asynchronous operation from either port
LVTTL-compatible, single 3.3V (±0.3V) power supply
Available in a 100-pin TQFP
Industrial temperature range (40°C to +85°C) is available
for selected speeds

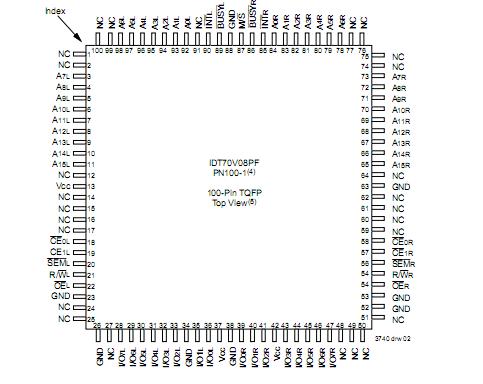

IDT70V08S Connection Diagram
