Product Details

Description



Features:

64K x 16 advanced high-speed CMOS Static RAM
Equal access and cycle times
Commercial and Industrial: 12/15/20ns
One Chip Select plus one Output Enable pin
Bidirectional data inputs and outputs directly TTL- compatible
Low power consumption via chip deselect
Upper and Lower Byte Enable Pins
Commercial and industrial product available in 44-pin
   Plastic SOJ package and 44-pin TSOP package

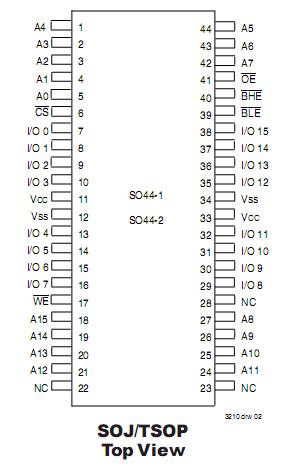

Pinout

Connection Diagram


Specifications

Symbol

Rating

Value

Unit

VTERM(2)

Terminal Voltage
with Respect to GND

-0.5 to +7.0

V

TA

Operating Temperature

0 to +70

oC

TBIAS

Temperature Under Bias

-55 to +125

oC

TSTG

Storage Temperature

-55 to +125

oC

PT

Power Dissipation

1.25

W

IOUT

DC Output Current

50

mA




Description

The IDT71016 is a 1,048,576-bit high-speed Static RAM organized as 64K x 16. It is fabricated using IDT's high-perfomance, high-reliability CMOS technology.  This state-of-the-art technology, combined with innovative circuit design techniques, provides a cost-effective solution for high-speed memory needs.

The IDT71016 has an output enable pin which operates as fast as 7ns,with address  access times as fast as 12ns.  All bidirectional inputs and outputs of the IDT71016 are TTL-compatible and operation is from a single 5V supply.  Fully static asynchronous circuitry is used, requiring no clocks or refresh for operation.

The IDT71016 is packaged in a JEDEC standard 44-pin Plastic SOJ and 44-pin TSOP Type II.
