IDT71124

Features: 128K x 8 advanced high-speed CMOS static RAMJEDEC revolutionary pinout (center power/GND) for reduced noise. Equal access and cycle times Commercial and Industrial: 12/15/20ns One Chip Select plus one Output Enable pin Bidirectional inputs and outputs directly TTL-compatibleLow power co...

product image

IDT71124 Picture
See larger image
SeekIC No. : 004372183 Detail

IDT71124: Features: 128K x 8 advanced high-speed CMOS static RAMJEDEC revolutionary pinout (center power/GND) for reduced noise. Equal access and cycle times Commercial and Industrial: 12/15/20ns One Chip Se...

IDT71124 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IDT71124
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

128K x 8 advanced high-speed CMOS static RAM
JEDEC revolutionary pinout (center power/GND) for reduced noise.
Equal access and cycle times
     Commercial and Industrial: 12/15/20ns
One Chip Select plus one Output Enable pin
Bidirectional inputs and outputs directly TTL-compatible
Low power consumption via chip deselect
Available in a 32-pin 400 mil Plastic SOJ.

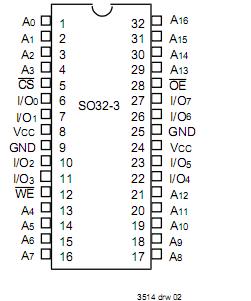

Pinout

Connection Diagram




Specifications

Symbol
Rating
Value
Unit
VTERM(2)
Terminal Voltage with Respect to GND
-0.5 to +7.0(2)
V
VI
Operating Temperature
0 to +70
TBIAS
Temperature Under Bias
-55 to +125
TSTG
Storage Temperature
-55 to +125
PT
Power Dissipation
1.25
W
IOUT
DC Output Current
50
mA



Description

The IDT71124 is a 1,048,576-bit high-speed static RAM orgaized as 128K x 8. It is fabricated using IDT's high-performance,igh-reliability CMOS technology. This state-of-the-art technology,ombined with innovative circuit design techniques, provides a  costffective solution for high-speed memory needs. The JEDEC enterpower/GND pinout reduces noise generation and improves ystem performance.

The IDT71124 has an output enable pin which operates as fasts 6ns, with address access times as fast as 12ns available. All idirectional inputs and outputs of the IDT71124 are TTL-compatible and operation is from a single 5V supply. Fully static asynchronous ircuitry is used; no clocks or refreshes are required for operation.

The IDT71124 is packaged in a 32-pin 400 mil Plastic SOJ.
