General Description
IDT72V70190 General Description
The IDT72V70190 is a non-blocking digital switch that has a capacity of 256 x 256 channels at 2.048 Mb/s. Some of the main features are: programmable stream and channel control, Processor Mode, input offset delay and highimpedance output control.
Per-stream input delay control is provided for managing large multi-chip switches that transport both voice channel and concatenated data channels. In addition, input streams can be individually calibrated for input frame offset.
IDT72V70190 Maximum Ratings
| Symbol | Parameter | Min. | Max. | Unit |
| VCC | Supply Voltage | -0.3 | 5.0 | V |
| Vi | Voltage on Digital Inputs | GND -0.3 | 5.5 | V |
| IO | Current at Digital Outputs | 20 | mA | |
| TS | Storage Temperature | -65 | +125 | °C |
| PD | Package Power Dissapation | | 1 | W |
NOTE:
1. Exceeding these values may cause permanent damage. Functional operation under
these conditions is not implied.
IDT72V70190 Features
• 256 x 256 channel non-blocking switching at 2.048 Mb/s
• Per-channel variable or constant throughput delay
• Automatic identification of ST-BUS®/GCI interfaces
• Accept 8 serial data streams of 2.048 Mb/s
• Automatic frame offset delay measurement
• Per-stream frame delay offset programming
• Per-channel high impedance output control
• Per-channel Processor Mode
• Control interface compatible to Intel/Motorola CPUs
• Connection memory block programming
• Available in 64-pin Thin Plastic Quad Flatpack (TQFP) and
64-pin Small Thin Quad Flatpack (STQFP)
•· 3.3V Power Supply
• Operating Temperature Range -40°C to +85°C
• 3.3V I/O with 5V Tolerant Inputs
• Per-channel variable or constant throughput delay
• Automatic identification of ST-BUS®/GCI interfaces
• Accept 8 serial data streams of 2.048 Mb/s
• Automatic frame offset delay measurement
• Per-stream frame delay offset programming
• Per-channel high impedance output control
• Per-channel Processor Mode
• Control interface compatible to Intel/Motorola CPUs
• Connection memory block programming
• Available in 64-pin Thin Plastic Quad Flatpack (TQFP) and
64-pin Small Thin Quad Flatpack (STQFP)
•· 3.3V Power Supply
• Operating Temperature Range -40°C to +85°C
• 3.3V I/O with 5V Tolerant Inputs

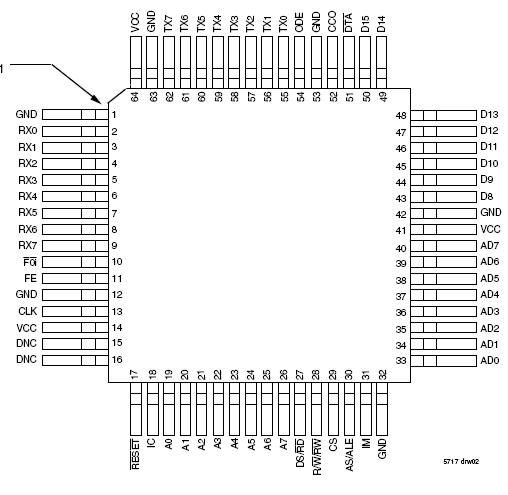

IDT72V70190 Connection Diagram
IDT72V70190
PDF/DataSheet Download
- Datasheet: IDT72V70190
- File Size: 145473 KB
- Manufacturer: IDT
- Click here to Download
