General Description
IDT72V71660 General Description
The IDT72V71660 has a non-blocking switch capacity of 2,048 x 2,048 channels at 2.048Mb/s, 4,096 x 4,096 channels at 4.096Mb/s, and 8,192 x 8,192 channels at 8.192Mb/s and 16,384 x 16,384 channels at 16.384Mb/s. With 64 inputs and 64 outputs, programmable per stream control, and a variety of operating modes the IDT72V71660 is designed for the TDM time slot interchange function in either voice or data applications.
Some of the main features of the IDT72V71660 are LOW power 3.3 Volt operation, automatic ST-BUS® /GCI sensing, memory block programming, simple microprocessor interface, one cycle direct internal memory accesses, JTAG Test Access Port (TAP) and per stream programmable input offset delay, variable or constant throughput modes, output enable and processor mode.
The IDT72V71660 is capable of switching up to 16,384 x 16,384 channels without blocking. Designed to switch 64 Kbit/s PCM or N x 64 Kbit/s data, the device maintains frame integrity in data applications and minimizes throughput delay for voice applications on a per-channel basis.
IDT72V71660 Maximum Ratings
| Symbol | Parameter | Min. | Max. | Unit |
| VCC | Supply Voltage | -0.5 | +4.0 | V |
| Vi | Voltage on Digital Inputs | GND -0.3 | VCC +0.3 | V |
| IO | Current at Digital Outputs | -50 | 50 | mA |
| TS | Storage Temperature | -55 | +125 | °C |
| PD | Package Power Dissapation | | 2 | W |
NOTE:
1. Exceeding these values may cause permanent damage. Functional operation under
these conditions is not implied.
IDT72V71660 Features
• 16K x 16K non-blocking switching at 16.384Mb/s
• 64 serial input and output streams
• Accepts data streams at 2.048Mb/s, 4.096Mb/s, 8.192Mb/s or 16.384Mb/s
• Per-channel Variable Delay Mode for low-latency applications
• Per-channel Constant Delay Mode for frame integrity applications
• Automatic identification of ST-BUS® and GCI bus interfaces
• Automatic frame offset delay measurement
• Per-stream frame delay offset programming
• Per-channel high-impedance output control
• Direct microprocessor access to all internal memories
• Memory block programming for quick setup
• IEEE-1149.1 (JTAG) Test Port
• 3.3V Power Supply
• Available in 208-pin (17mm x 17mm) Plastic Ball Grid Array
(PBGA) and 208-pin (28mm x 28mm) Plastic Quad Flatpack (PQFP) packages
• Operating Temperature Range -40°C to +85°CA
• 64 serial input and output streams
• Accepts data streams at 2.048Mb/s, 4.096Mb/s, 8.192Mb/s or 16.384Mb/s
• Per-channel Variable Delay Mode for low-latency applications
• Per-channel Constant Delay Mode for frame integrity applications
• Automatic identification of ST-BUS® and GCI bus interfaces
• Automatic frame offset delay measurement
• Per-stream frame delay offset programming
• Per-channel high-impedance output control
• Direct microprocessor access to all internal memories
• Memory block programming for quick setup
• IEEE-1149.1 (JTAG) Test Port
• 3.3V Power Supply
• Available in 208-pin (17mm x 17mm) Plastic Ball Grid Array
(PBGA) and 208-pin (28mm x 28mm) Plastic Quad Flatpack (PQFP) packages
• Operating Temperature Range -40°C to +85°CA

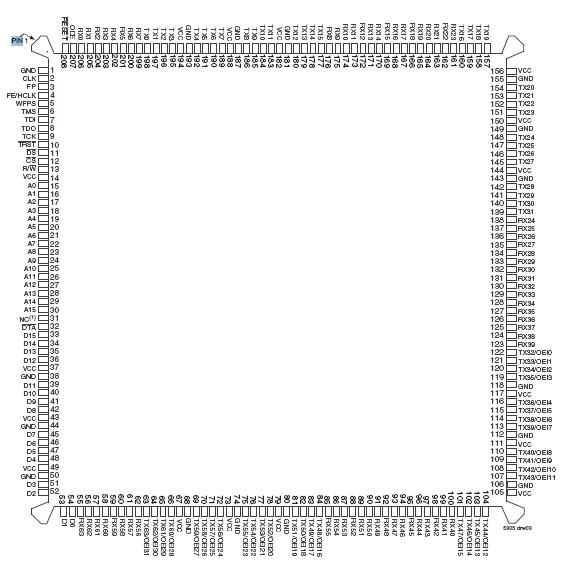

IDT72V71660 Connection Diagram
IDT72V71660
