IDT74AUC16245

Features: • ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0)• 1.8V Optimized• 0.8V to 2.7V Operating Range• Inputs/outputs tolerant up to 3.6V• Output drivers: ±9mA @ VDD = 2.3V• Supports hot insertion• Availabl...

product image

IDT74AUC16245 Picture
See larger image
SeekIC No. : 004372807 Detail

IDT74AUC16245: Features: • ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0)• 1.8V Optimized• 0.8V to 2.7V Operating Range• Inputs/outputs tolera...

IDT74AUC16245 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IDT74AUC16245
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/3

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• ESD > 2000V per MIL-STD-883, Method 3015; > 200V using
  machine model (C = 200pF, R = 0)
• 1.8V Optimized
• 0.8V to 2.7V Operating Range
• Inputs/outputs tolerant up to 3.6V
• Output drivers: ±9mA @ VDD = 2.3V
• Supports hot insertion
• Available in TSSOP, TVSOP, and VFBGA packages


Application

• High performance, low voltage communications systems
• High performance, low voltage computing systems


Pinout

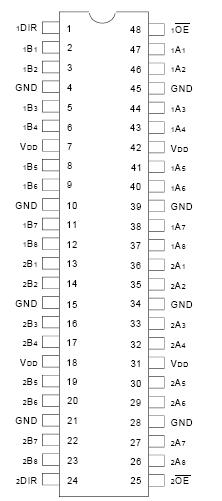

Connection Diagram


Specifications

Symbol Description Max Unit
VTERM Terminal Voltage with Respect to GN
(all input and VDD terminals)		 0.5 to +3.6 V
VTERM Terminal Voltage with Respect to GND
(any I/O or Output terminals in highimpedance
or power-off state)		 0.5 to +3.6 V
VTERM Terminal Voltage with Respect to GND
(any I/O or Output terminals in high or
low state)		 0.5 to +3.6 V
TSTG Storage Temperature 65 to +150 °C
IOUT Continuous DC Output Current ±20 mA
IIK Continuous Clamp Current +50 mA
IOK Continuous Clamp Current, VO < 0 VI > VDD -50 mA
VI < 0 -50
IDD
ISS		 Continuous Current th
each VDD or GND		 ±100 mA
NOTE:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause
permanent damage to the device. This is a stress rating only and functional operation
of the device at these or any other conditions above those indicated in the operational
sections of this specification is not implied. Exposure to absolute maximum rating
conditions for extended periods may affect reliability.


Description

This 16-bit bus transceiver is built using advanced CMOS technology. The AUC16245 is designed specifically for asynchronous communications between data buses. The control function implementation minimizes external timing requirements.

IDT74AUC16245 can be used as one 16-bit transceiver or two 8-bit transceivers. IDT74AUC16245 allows data transmission from A bus to B bus or from B bus to A bus, depending on the logic level at the direction-control (DIR) input. The output-enable (OE) input can be used to disable the device so that the buses are effectively isolated. IDT74AUC16245 is fully specified for partial power-down applications using IOFF. The IOFF circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

The AUC16245 is designed with a ±9mA output driver. This driver is capable of driving a moderate load while maintaining speed performance.

To ensure the high-impedance state during power up or power down, OE IDT74AUC16245 should be tied to VDD through a pull-up resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.
