Part Number: IDT74CBTLV16245
Description: The CBTLV16245 is a set of 16-bit bus switches. It has standard 16245 pinouts. The device is organized as dual 8-bit lo...
- Table of contents:
IDT74CBTLV16245
-
Suppliers
DataSheet
General Description
IDT74CBTLV16245 General Description
The CBTLV16245 is a set of 16-bit bus switches. It has standard 16245 pinouts. The device is organized as dual 8-bit low resistance switches with independent Output Enable (xOE) control inputs. The switches can be turned on under the control of the LVTTL-compatible Output Enable signals (xOE) for bidirectional data flow between port A and port B. When xOE is high, the switch is off and a high impedance exists between Port A and Port B.
To ensure the high-impedance state during power up or power down, OE should be tied to VCC through a pullup resistor.
IDT74CBTLV16245 Maximum Ratings
|
Symbol |
Description |
Max. |
Unit |
| VCC | SupplyVoltage Range |
0.5 to +4.6 |
V |
| VI | Input Voltage Range |
0.5 to +4.6 |
V |
| Continuous Channel Current |
128 |
mA | |
| IIK | Input Clamp Current, VI/O < 0 |
-50 |
mA |
| TSTG | Storage TemperatureRange |
65 to +150 |
° C |
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
IDT74CBTLV16245 Features
• 5 A/B bi-directional switch
• Isolation Under Power-Off Conditions
• Over-voltage tolerant
• Latch-up performance exceeds 100mA
• VCC = 2.3V - 3.6V, normal range
• ESD >2000V per MIL-STD-883, Method 3015; >200V using machine model (C = 200pF, R = 0)
• Available in SSOP, TSSOP, and TVSOP packages
• Isolation Under Power-Off Conditions
• Over-voltage tolerant
• Latch-up performance exceeds 100mA
• VCC = 2.3V - 3.6V, normal range
• ESD >2000V per MIL-STD-883, Method 3015; >200V using machine model (C = 200pF, R = 0)
• Available in SSOP, TSSOP, and TVSOP packages
IDT74CBTLV16245 Typical Application
• 3.3V High Speed Bus Switching and Bus Isolation

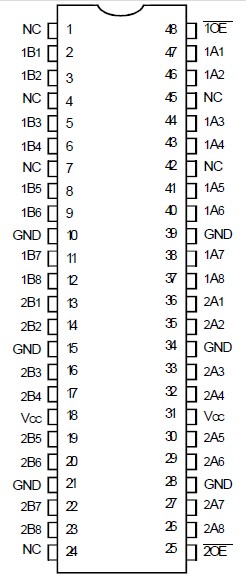

IDT74CBTLV16245 Connection Diagram
