Part Number: IDT74CBTLVR16292









Description: The CBTLVR16292 is a single 12-bit multiplexing / demultiplexing bus switch, which provides high speed switching. Both ...


Urgent Purchase

IDT74CBTLVR16292 General Description


The CBTLVR16292 is a single 12-bit multiplexing / demultiplexing bus switch, which provides high speed switching. Both A and B ports have 25 series dampening resistors to minimize undershoot, reflection noise, and charge sharing effects. The demultiplexer side has a 500 resistor termination to GND to eliminate floating nodes.

When the select (S) input is low, the A port is connected to the B1 port, and the R pulldown is connected to the B2 port. Similarly, when the S input is high, A port is connected to B2 port and the R pulldown is connected to B1 port.

IDT74CBTLVR16292 Maximum Ratings

Symbol
Description
Max.
Unit
VCC SupplyVoltage Range
0.5 to +4.6
V
VI Input Voltage Range
0.5 to +4.6
V
  Continuous Channel Current
128
mA
IIK Input Clamp Current, VI/O < 0
-50
mA
TSTG Storage TemperatureRange
65 to +150
° C
NOTE:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.

IDT74CBTLVR16292 Features

• Isolation Under Power-Off Conditions
• Make-before-break feature
• Over-voltage tolerant
• Internal 500 pull-down resistor to GND
• Both A and B ports have 25 series dampening resistors
• Latch-up performance exceeds 100mA
• VCC = 2.3V - 3.6V, normal range
• ESD >2000V per MIL-STD-883, Method 3015; >200V using machine model (C = 200pF, R = 0)
• Available in SSOP, TSSOP, and TVSOP packages

IDT74CBTLVR16292 Typical Application

• 3.3V High Speed Bus Switching and Bus Isolation
• Resource sharing

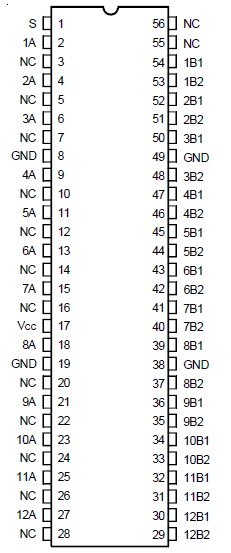

IDT74CBTLVR16292 Connection Diagram

IDT74CBTLVR16292 Connection Diagram

IDT74CBTLVR16292 datasheet

IDT74CBTLVR16292
PDF/DataSheet Download

  • Datasheet: IDT74CBTLVR16292
  • File Size: 70661 KB
  • Manufacturer: IDT [Integrated Device Technology]
  • Click here to Download
