Part Number: IDT74FCT645T
Description: The IDT octal bidirectional transceivers are built using an advanced dual metal CMOS technology. The F...
- Table of contents:
IDT74FCT645T
-
Suppliers
DataSheet
General Description
IDT74FCT645T General Description
The IDT octal bidirectional transceivers are built using an advanced dual metal CMOS technology. The FCT645T is designed for asynchronous twoway communication between data buses. The transmit/receive (T/R) input determines the direction of data flow through the bidirectional transceiver. Transmit (active high) enables data from A ports to B ports, and receive (active low) from B ports to A ports. The output enable (OE) input, when high, disables both A and B ports by placing them in high Z condition.
IDT74FCT645T Maximum Ratings
|
Symbol |
Description |
Max |
Unit |
|
VTERM(2) |
Terminal Voltage with Respect to GND |
0.5 to +7 |
V |
|
VTERM(3) |
Terminal Voltage with Respect to GND |
0.5 to VCC+0.5 |
V |
|
TSTG |
Storage Temperature |
65 to +150 |
°C |
|
IOUT |
DC Output Current |
60 to +120 |
mA |
NOTES:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability. No terminal voltage may exceed Vcc by +0.5V unless otherwise noted.
2. Inputs and Vcc terminals only.
3. Output and I/O terminals only.
IDT74FCT645T Features
• Std., A, C, and D grades
• Low input and output leakage 1A (max.)
• CMOS power levels
• True TTL input and output compatibility: VOH = 3.3V (typ.) VOL = 0.3V (typ.)
• High Drive outputs (-15mA IOH, 64mA IOL)
• Meets or exceeds JEDEC standard 18 specifications
• Available in SOIC and QSOP packages
• Low input and output leakage 1A (max.)
• CMOS power levels
• True TTL input and output compatibility: VOH = 3.3V (typ.) VOL = 0.3V (typ.)
• High Drive outputs (-15mA IOH, 64mA IOL)
• Meets or exceeds JEDEC standard 18 specifications
• Available in SOIC and QSOP packages

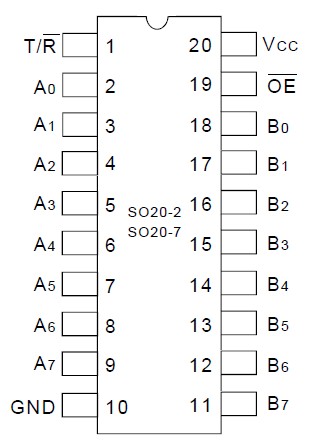

IDT74FCT645T Connection Diagram
