Part Number: IDT74LVC16823A
Description: The LVC16823A 18-bit register is built using advanced dual metal CMOS technology. This high-spee...
- Table of contents:
IDT74LVC16823A
-
Suppliers
DataSheet
General Description
IDT74LVC16823A General Description
The LVC16823A 18-bit register is built using advanced dual metal CMOS technology. This high-speed, low-power register is ideal for use as a buffer register for data synchronization and storage. The Output Enable (OE) and clock (CLK) controls are organized to operate each device as two 9-bit registers or one 18-bit register with common clock. Flow-through organization of signal pins simplifies layout. All inputs are designed with hysteresis for improved noise margin.
All pins of the LVC16823A can be driven from either 3.3V or 5V devices. This feature allows the use of this device as a translator in a mixed 3.3V/ 5V supply system.
The LVC16823A has been designed with a ±24mA output driver. The driver is capable of driving a moderate to heavy load while maintaining speed performance.
IDT74LVC16823A Maximum Ratings
|
Symbol |
Description |
Max |
Unit |
|
VTERM |
Terminal Voltage with Respect to GND |
0.5 to +6.5 |
V |
|
TSTG |
Storage Temperature |
65 to +150 |
°C |
|
IOUT |
DC Output Current |
50 to +50 |
mA |
|
IIK IOK |
Continuous Clamp Current, VI < 0 or VO < 0 |
50 |
mA |
|
ICC ISS |
Continuous Current through each VCC or GND |
±100 |
mA |
NOTE:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
IDT74LVC16823A Features
• Typical tSK(o) (Output Skew) < 250ps
• ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0)
• VCC = 3.3V ± 0.3V, Normal Range
• VCC = 2.7V to 3.6V, Extended Range
• CMOS power levels (0.4 W typ. static)
• All inputs, outputs, and I/O are 5V tolerant
• Supports hot insertion
• Available in SSOP, TSSOP, and TVSOP packages
• High Output Drivers: ±24mA
• Reduced system switching noise
• ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0)
• VCC = 3.3V ± 0.3V, Normal Range
• VCC = 2.7V to 3.6V, Extended Range
• CMOS power levels (0.4 W typ. static)
• All inputs, outputs, and I/O are 5V tolerant
• Supports hot insertion
• Available in SSOP, TSSOP, and TVSOP packages
• High Output Drivers: ±24mA
• Reduced system switching noise
IDT74LVC16823A Typical Application
• 5V and 3.3V mixed voltage systems
• Data communication and telecommunication systems
• Data communication and telecommunication systems

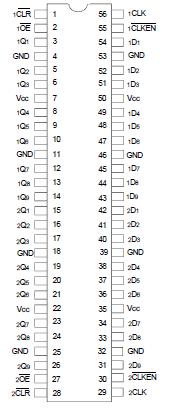

IDT74LVC16823A Connection Diagram
IDT74LVC16823A
