Features:

• Typical tSK(o) (Output Skew) < 250ps
• ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0)
• VCC = 3.3V ± 0.3V, Normal Range
• VCC = 2.7V to 3.6V, Extended Range
• CMOS power levels (0.4 W typ. static)
• All inputs, outputs, and I/O are 5V tolerant
• Supports hot insertion
• Available in SSOP, TSSOP, and TVSOP packages
• High Output Drivers: ±24mA
• Reduced system switching noise



Application

• 5V and 3.3V mixed voltage systems
• Data communication and telecommunication systems



Pinout

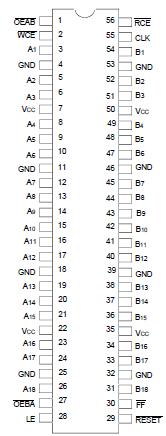

  Connection Diagram


Specifications

Symbol
Description
Max
Unit
VTERM
Terminal Voltage with Respect to GND
0.5 to +6.5
V
TSTG
Storage Temperature
65 to +150
°C
IOUT
DC Output Current
50 to +50
mA
IIK
IOK
Continuous Clamp Current,
VI < 0 or VO < 0
50
mA
ICC
ISS
Continuous Current through each
VCC or GND
±100
mA

NOTE:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.




Description

The IDT74LVCH16701A 18-bit read/write buffer is built using advanced dual metal CMOS technology. The device is designed as an 18-bit read/write buffer with a four deep FIFO and a read-back latch. It can be used as a read/ write buffer between a CPU and a memory or to interface a high-speed bus and a slow peripheral. The A-to-B (write) path has a four deep FIFO for pipelined operations. The FIFO can be reset and a FIFO full condition is indicated by the full flag (FF). The B-to-A (read) path has a latch.

All pins can be driven from either 3.3V or 5V devices. This feature allows the use of this device as a translator in a mixed 3.3V/5V supply system.

The IDT74LVCH16701A has been designed with a ±24mA output driver. This driver is capable of driving a moderate to heavy load while maintaining speed performance.

The IDT74LVCH16701A has "bus-hold" which retains the inputs' last state whenever the input goes to a high impedance. This prevents floating inputs and eliminates the need for pull-up/down resistors
