General Description
IDT77V126L200 General Description
The IDT77V126L200 is a member of IDT's family of products supporting Asynchronous Transfer Mode (ATM) data communications and networking. The IDT77V126L200 implements the physical layer for 25.6 Mbps ATM, connecting a serial copper link (UTP Category 3 and 5) to an ATM layer device such as a SAR or a switch ASIC. The IDT77V126L200 also operates at 51.2 and 204.8 Mbps and is well suited to backplane driving applications. The 77V126L200 utilizes an 8- bit UTOPIA1 interface on the cell side.
The IDT77V126L200 is fabricated using IDT's state-of-the-artCMOS technology, providing the highest levels of integration, performance and reliability, with the low-power consumption characteristics of CMOS.
IDT77V126L200 Maximum Ratings
| Symbol | Rating | Value | Unit |
| VTERM | Terminal Voltage with respect to GND | 0.5 to +5.5 | V |
| TBIAS | Temperature Under Bias | 55 to +125 | °C |
| TSTG | Storage Temperature |
55 to +125 | °C |
| IOUT | DC Output Current | 50 | mA |
Note: Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a
stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of
this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
IDT77V126L200 Features
· Performs the PHY-Transmission Convergence (TC) and
Physical Media Dependent (PMD) Sublayer functions of the
Physical Layer
· Compliant to ATM Forum (af-phy-040.000) and ITU-T I.432.5
specifications for 25.6 Mbps physical interface
· Operates at 25.6, 51.2, 102.4, 204.8 Mbps data rates
· Backwards Compatible with 77V106L25
· 8-bit UTOPIA Level 1 Interface
· 3-Cell Transmit & Receive FIFOs
· Receiver Auto-Synchronization and Good Signal Indication
· LED Interface for status signalling
· Supports UTP Category 3 and 5 physical media
· Interfaces to standard magnetics
· Low-Power CMOS
· 3.3V supply with 5V tolerant inputs
· 64-lead TQFP Package (10 x 10 mm)
· Commercial and Industrial Temperature Ranges
Physical Media Dependent (PMD) Sublayer functions of the
Physical Layer
· Compliant to ATM Forum (af-phy-040.000) and ITU-T I.432.5
specifications for 25.6 Mbps physical interface
· Operates at 25.6, 51.2, 102.4, 204.8 Mbps data rates
· Backwards Compatible with 77V106L25
· 8-bit UTOPIA Level 1 Interface
· 3-Cell Transmit & Receive FIFOs
· Receiver Auto-Synchronization and Good Signal Indication
· LED Interface for status signalling
· Supports UTP Category 3 and 5 physical media
· Interfaces to standard magnetics
· Low-Power CMOS
· 3.3V supply with 5V tolerant inputs
· 64-lead TQFP Package (10 x 10 mm)
· Commercial and Industrial Temperature Ranges
IDT77V126L200 Typical Application
· Up to 204.8Mbps backplane transmission
· Rack-to-rack short links
· ATM Switches
· Rack-to-rack short links
· ATM Switches

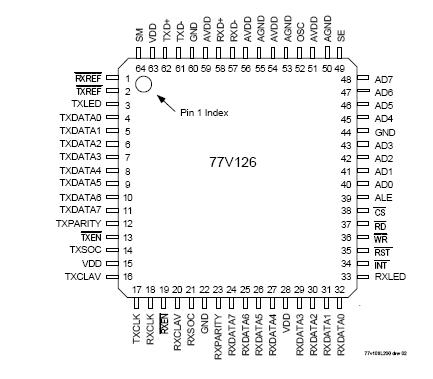

IDT77V126L200 Connection Diagram
IDT77V126L200
