IDTQS316245

Features: * Enhanced N channel FET with no inherent diode to Vcc*5 bidirectional switches connect inputs to outputs* Pin compatible with FCT16245* Flowthrough pinout for easy layout* Zero propagation delay, zero ground bounce* TTL-compatible input and output levels* Undershoot clamp diodes on all ...

product image

IDTQS316245 Picture
See larger image
SeekIC No. : 004373409 Detail

IDTQS316245: Features: * Enhanced N channel FET with no inherent diode to Vcc*5 bidirectional switches connect inputs to outputs* Pin compatible with FCT16245* Flowthrough pinout for easy layout* Zero propagatio...

IDTQS316245 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IDTQS316245
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* Enhanced N channel FET with no inherent diode to Vcc
*5 bidirectional switches connect inputs to outputs
* Pin compatible with FCT16245
* Flowthrough pinout for easy layout
* Zero propagation delay, zero ground bounce
* TTL-compatible input and output levels
* Undershoot clamp diodes on all switch and control inputs
* Available in SSOP package


Application

* Hot-swapping, hot-docking
* Voltage translation (5V to 3.3V)
* Bus switching, isolation
* Power conservation, clock gating
* Logic replacement


Pinout

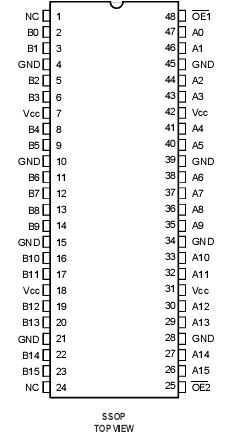

Connection Diagram


Specifications

Symbol Description Max Unit
VTERM(2) Supply Voltage to Ground 0.5 to +7 V
VTERM(3) DC Switch Voltage VS 0.5 to +7 V
VTERM(3) DC Input Voltage VIN 0.5 to +7 V
VAC AC Input Voltage (pulse width 20ns) 3 V
IOUT DC Output Current 120 mA
PMAX Maximum Power Dissipation 0.5 W
TSTG Storage Temperature 65 to +150



Description

  The QS316245  provides a set of 16 high-speed CMOS TTL-compatible bus switches (two banks of 8 switches each) in a flow-thru pinout. The low ON resistance of the QS316245 allows inputs to be connected to outputs without adding propagation delay and without generating additional ground bounce noise. The Output Enable (OEx) signal turns the switches on similar to the OEx signal of the 74 245.  The QS316245 is ideally suited for 5V to 3.3V translation, bus switching and isolation, and hot insertion.

  QuickSwitch devices IDTQS316245 provide an order of magnitude faster speed than conventional logic devices.
