Product Details

Description



Features:

• Enhanced N channel FET with no inherent diode to VCC
• Low propagation delay and zero ground bounce
• 25 resistors for low noise
• Undershoot Clamp Diodes on all switch and control Inputs
• Four enables control five bits each
• TTL-compatible input and output levels
• Available in 48-pin QVSOP package


Application

• Hot-swapping, hot-docking
• Voltage translation (5V to 3.3V)
• Power conservation
• Capacitance reduction and isolation
• Bus isolation
• Clock gating


Pinout

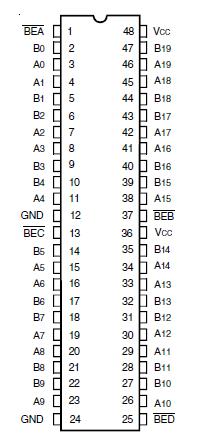

Connection Diagram


Specifications

Symbol
Description
Max
Unit
VTERM(2)
Supply Voltage to Ground
0.5 to +7
V
VTERM(3)
DC Switch Voltage VS
0.5 to +7
V
VTERM(3)
DC Input Voltage VIN
0.5 to +7
V
VAC
AC Input Voltage (pulse width 20ns)
3
V
IOUT
DC Output Current
120
mA
PMAX
MaximumPower Dissipation (TA = 85°C)
0.5
W
TSTG
Storage Temperature
65 to +150
°C

NOTES:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
2. VCC terminals.
3. All terminals except VCC .




Description

The QS32X2384 provides a set of twenty high-speed CMOS TTLcompatible bus switches. The QS32x2384 also includes internal 25 series termination resistors to reduce reflection noise in high-speed applications. The Bus Enable (BE) signals turn the switches on. Four Bus Enable signals are provided, one for each of five bits of the 20-bit bus. The '384 family of QuickSwitch products is ideal for switching wide digital buses, as well as hotplug buffering, and 5V to 3V conversion.

The QS32X2384 is characterized for operation at -40°C to +85°C.
