Part Number: IDTQS32X245
Description: The QS32X245 provides a set of 16 high-speed CMOS TTL-compatible bus switches in a flow-through...
- Table of contents:
IDTQS32X245
-
Suppliers
DataSheet
General Description
IDTQS32X245 General Description
The QS32X245 provides a set of 16 high-speed CMOS TTL-compatible bus switches in a flow-through pinout. The low ON resistance of the QS32X245 allows inputs to be connected to outputs without adding propa-gation delay and without generating additional ground bounce noise. The Output Enable (OEn) signals turn the switches on similar to the OEn signal of the 74'245.
QuickSwitch devices provide an order of magnitude faster speed than conventional logic devices.
The QS32X245 is characterized for operation at -40°C to +85°C.
IDTQS32X245 Maximum Ratings
| Symbol | Description | Max | Unit |
| VTERM(2) | Supply Voltage to Ground | 0.5 to +7 | V |
| VTERM(3) | DC Switch Voltage VS | 0.5 to +7 | V |
| VTERM(3) | DC Input Voltage VIN | 0.5 to +7 | V |
| VAC | AC Input Voltage (pulse width 20ns) | 3 | V |
| IOUT | DC Output Current | 120 | mA |
| PMAX | Maximum Power Dissipation (TA = 85) | 0.92 | W |
| TSTG | Storage Temperature | 65 to +150 |
IDTQS32X245 Features
* Enhanced N channel FET with no inherent diode to Vcc
*5 bidirectional switches connect inputs to outputs
* Dual '245 function
* Zero propagation delay, zero ground bounce
* Undershoot clamp diodes on all switch and control inputs
* TTL-compatible control inputs
* Available in 40-pin QVSOP package
*5 bidirectional switches connect inputs to outputs
* Dual '245 function
* Zero propagation delay, zero ground bounce
* Undershoot clamp diodes on all switch and control inputs
* TTL-compatible control inputs
* Available in 40-pin QVSOP package
IDTQS32X245 Typical Application
Hot-swapping, hot-docking
Voltage translation (5V to 3.3V)
Bus switching and isolation
Power conservation
Clock gating
Logic replacement
Voltage translation (5V to 3.3V)
Bus switching and isolation
Power conservation
Clock gating
Logic replacement

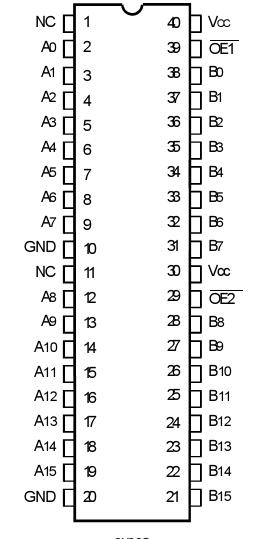

IDTQS32X245 Connection Diagram
