IDTQS32XVH384

Features: • N channel FET switches with no parasitic diode to VCC Isolation under power-off conditions No DC path to VCC or GND 5V tolerant in OFF and ON state• 5V tolerant I/Os• Low RON - 4 typical• Flat RON characteristics over operating range• Rail-to-rail switchin...

product image

IDTQS32XVH384 Picture
See larger image
SeekIC No. : 004373437 Detail

IDTQS32XVH384: Features: • N channel FET switches with no parasitic diode to VCC Isolation under power-off conditions No DC path to VCC or GND 5V tolerant in OFF and ON state• 5V tolerant I/Os• L...

IDTQS32XVH384 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IDTQS32XVH384
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/6

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• N channel FET switches with no parasitic diode to VCC
Isolation under power-off conditions
No DC path to VCC or GND
5V tolerant in OFF and ON state
• 5V tolerant I/Os
• Low RON - 4 typical
• Flat RON characteristics over operating range
• Rail-to-rail switching 0 - 5V
• Bidirectional dataflow with near-zero delay: no added ground bounce
• Excellent RON matching between channels
• VCC operation: 2.3V to 3.6V
• High bandwidth - up to 500MHz
• LVTTL-compatible control Inputs
• Undershoot Clamp Diodes on all switch and control Inputs
• Low I/O capacitance, 4pF typical
• Available in 48-pin QVSOP (S1) package


Application

• Hot-swapping
• 10/100 Base-T, Ethernet LAN switch
• Low distortion analog switch
• Replaces mechanical relay
• ATM 25/155 switching


Pinout

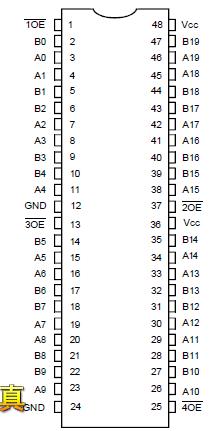

Connection Diagram


Specifications

Symbol Description Max Unit
VTERM(2) SupplyVoltage to Ground 0.5 to +4.6 V
VTERM(3) DC Switch Voltage VS 0.5 to +0.5 V
VTERM(3) DC Input Voltage VIN 0.5 to +5.5 V
VAC AC Input Voltage (pulse width 20ns) 3 V
TSTG Storage Temperature 65 to +150 °C
IOUT DC Output Current 120 mA

NOTES:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
2. VCC terminals.
3. All terminals except VCC.




Description

The IDTQS32XVH384 HotSwitch is a high bandwidth, 20-bit bus switch. The IDTQS32XVH384 has very low ON resistance, resulting in under 250ps propagation delay through the switch. Four banks of five switches are controlled by independent (xOE), LVTTL compatible signals for bidirectional data flow with no added delay or ground bounce. In the ON state, the switches can pass signals up to 5V. In the OFF state, the switches offer very high impedence at the terminals.
The combination of near-zero propagation delay, high OFF impedance, and over-voltage tolerance makes the QS32XVH384 ideal for high performance communications applications.

The IDTQS32XVH384 is characterized for operation from -40°C to +85°C.
