IDTQS3VH245

Features: * N channel FET switches with no parasitic diode to VCC Isolation under power-off conditions No DC path to VCCor GND 5V tolerant in OFF and ON state* 5V tolerant I/Os* Low RON- 4 typical* Flat RONcharacteristics over operating range* Rail-to-rail switching 0 - 5V* Bidirectional dataflow ...

product image

IDTQS3VH245 Picture
See larger image
SeekIC No. : 004373479 Detail

IDTQS3VH245: Features: * N channel FET switches with no parasitic diode to VCC Isolation under power-off conditions No DC path to VCCor GND 5V tolerant in OFF and ON state* 5V tolerant I/Os* Low RON- 4 typical* ...

IDTQS3VH245 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IDTQS3VH245
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/19

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* N channel FET switches with no parasitic diode to VCC
Isolation under power-off conditions
No DC path to VCC or GND
5V tolerant in OFF and ON state
* 5V tolerant I/Os
* Low RON - 4 typical
* Flat RON characteristics over operating range
* Rail-to-rail switching 0 - 5V
* Bidirectional dataflow with near-zero delay: no added ground bounce
* Excellent RON matching between channels
*VCC operation: 2.3V to 3.6V
* High bandwidth - up to 500MHz
* LVTTL-compatible control Inputs
* Undershoot Clamp Diodes on all switch and control Inputs
* Low I/O capacitance, 4pF typical
* Available in QSOP, SOIC, and TSSOP packages


Application

* Hot-swapping
* 10/100 Base-T, Ethernet LAN swit
* Low distortion analog switch
* Replaces mechanical relay
* ATM 25/155 switching
* Bus switching and isolation

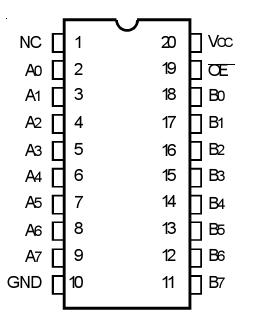

Pinout

Connection Diagram


Specifications

Symbol Description Max Unit
VTERM(2) SupplyVoltage to Ground 0.5 to +4.6 V
VTERM(3) DC Switch Voltage VS 0.5 to +5.5 V
VTERM(3) DC Input Voltage VIN 0.5 to +5.5 V
VAC AC Input Voltage (pulse width 20ns) 3 V
IOUT DC Output Current (max. sink current/pin) 120 mA
TSTG Storage Temperature 65 to +150



Description

  The IDTQS3VH245 HotSwitch 8-bit bus switch is a high bandwidth bus switch.The IDTQS3VH245 has very low ON resistance, resulting in under 250ps propagation delay through the switch.   The switches can be turned ON under the control of the LVTTL-compatible Output Enable  signal for bidirectional data flow with no added delay or ground bounce.  In the ON state, the switches can pass signals up to 5V.  In the OFF state, the switches offer very high impedence at the terminals.

  The combination of near-zero propagation delay, high OFF impedance, and over-voltage tolerance makes the IDTQS3VH245 ideal forhigh performance communications applications.

  The IDTQS3VH245 is characterized for operation from -40 to +85.
