IL2904

Features: • Internally frequency compensated for unity gain• Large DC voltage gain: 100dB• Wide power supply range: 3V ~ 32V (or ±1.5V ~ ±16V)• Input common-mode voltage range includes ground• Large output voltage swing: 0V DC to VCC-1.5V DC• Power drain suitabl...

product image

IL2904 Picture
See larger image
SeekIC No. : 004373961 Detail

IL2904: Features: • Internally frequency compensated for unity gain• Large DC voltage gain: 100dB• Wide power supply range: 3V ~ 32V (or ±1.5V ~ ±16V)• Input common-mode voltage rang...

IL2904 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IL2904
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Internally frequency compensated for unity gain
• Large DC voltage gain: 100dB
• Wide power supply range: 3V ~ 32V (or ±1.5V ~ ±16V)
• Input common-mode voltage range includes ground
• Large output voltage swing: 0V DC to VCC-1.5V DC
• Power drain suitable for battery operation
• Low input offset voltage and offset current
• Differential input voltage range equal to the power supply voltage
• Possible to exchange the position of Pin9 for Pin1 because of Pin Connection being symmetric(IL2904S only)


Pinout

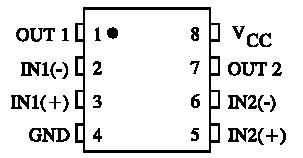

Connection Diagram


Specifications

Symbol Parameter Value Unit
VCC Power Supply Voltages Single Supply Split Supplies 32
±16		 V
VIDR Input Differential Voltage Range (1) ±32 V
VICR Input Common Mode Voltage Range -0.3 to 32 V
ISC Output Short Circuit Duration Continuous
TJ Junction Temperature Plastic Packages 150 °C
Tstg Storage Temperature Plastic Packages -55 to +125 °C
IIN Input Current, per pin (2) 50 mA
TL Lead Temperature, 1mm from Case for 10 Seconds 260 °C



Description

The IL2904 contains two independent high gain operational amplifiers with internal frequency compensation. The two op-amps operate over a wide voltage range from a single power supply. Also use a split power supply. The device has low power supply current drain, regardless of the power supply voltage. The low power drain also makes the IL2904 a good choice for battery operation.

When your project calls for a traditional op-amp function, now you can streamline your design with a simple single power supply. Use ordinary +5VDC common to practically any digital system or personal computer application, without requiring an extra 15V power supply just to have the interface electronics you need.

The IL2904 is a versatile, rugged workhorse with a thousand-and-one uses, from amplifying signals from a variety of transducers to dc gain blocks, or any op-amp function. The attached pages offer some recipes that will have your project cooking in no time.
