General Description
IL3726AN General Description
The IL3726AN is a low voltage speech network which includes Mic amp. transmit amp, receive amp. and stabilized DC-supply It handles the voice signal performing the 2/4 wire interface and changing the gain on both sending and receiving amplifiers to compensate for line attenuation by sensing the line length through the line current.
Application dependent parameters such as amplitude of each amp, sidetone level, line balance and frequency response are controlled by external components. Each gain can be controlled by external component exchange.
IL3726AN Maximum Ratings
| Symbol | Parameter | Min | Max | Unit |
| VLN | Positive line voltage, tp = 2s | 0 | 18 | V |
| Iline | Line current continious | 0 | 130 | mA |
| Tstg | Storage temperature | -55 | +125 | C |
| TJ | Operating temperature range | -40 | +70 | C |
IL3726AN Features
• Uses a minimum of external components (7 Capacitors & 11 Resistors)
• Low Voltage Operating
• Symmetrical inputs for microphones, provided good balance to ground
• DTMF signal input with confidence tone
• Mute input for DTMF dialling
• Line loss compensation (line current dependent) for microphone and earpiece amplifiers
• Gain control curve adaptable to exchange supply
• DC line voltage adjustment facility
• Low Voltage Operating
• Symmetrical inputs for microphones, provided good balance to ground
• DTMF signal input with confidence tone
• Mute input for DTMF dialling
• Line loss compensation (line current dependent) for microphone and earpiece amplifiers
• Gain control curve adaptable to exchange supply
• DC line voltage adjustment facility

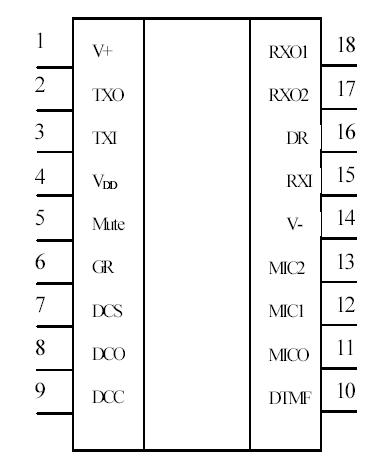

IL3726AN Connection Diagram
IL3726AN
PDF/DataSheet Download
- Datasheet: IL3726AN
- File Size: 246314 KB
- Manufacturer: INTEGRAL [Integral Corp.]
- Click here to Download
