Part Number: IL393N
Description: The IL393N consists of two independent precision voltage comparators designed specifically to operate ...
- Table of contents:
IL393N
-
Suppliers
DataSheet
General Description
IL393N General Description
The IL393N consists of two independent precision voltage comparators designed specifically to operate from a single power supply.Operation from split power supplies is also possible and the low power supply current drain is independent of the supply voltage range. Darlington connected pnp input stage allows the input common-mode voltage to include ground.
IL393N Features
·Single Supply Operation, V +2.0 - +36
·Dual Supply Operation, V ±1.0 - ±18
·Compatible with All forms of Logic
·Allow Comparison of Voltages Near Ground Potential
·Low Input Bias Current 25nA typ
·Low Input Offset Current ±5 nA typ
·Low Current Drain 400mA typ
·Low Offset Voltage ±2 mV
·Dual Supply Operation, V ±1.0 - ±18
·Compatible with All forms of Logic
·Allow Comparison of Voltages Near Ground Potential
·Low Input Bias Current 25nA typ
·Low Input Offset Current ±5 nA typ
·Low Current Drain 400mA typ
·Low Offset Voltage ±2 mV

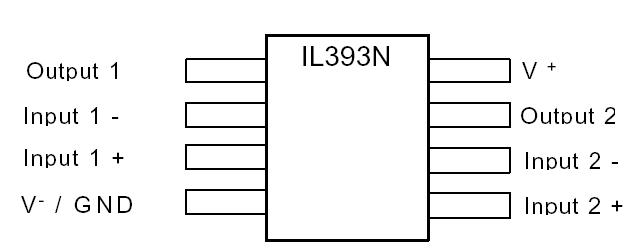

IL393N Connection Diagram
IL393N
