Part Number: IL7101N



MFG: HYNIX

Package Cooled: DIP-8P

D/C: 02+

Description: The IL7101N is designed for use in earth leakage circuit interrupters for operation directly oft the A...


Urgent Purchase

IL7101N General Description


The IL7101N is designed for use in earth leakage circuit interrupters for operation directly oft the AC Line in breakers. It contains pre regulator, main regulator, after regulator, differential amplifier, level comparator, latch circuit. The input in the differential amplifier is connect to the secondary node of zero current transformer. The level comparator generates high level when earth leakage current is greater than some level.

IL7101N Maximum Ratings

Supply Voltage . . . . . . . . . . . . . . . . . .20V
Supply Current . . . . . . . . . . . . . . . . . .8mA
Power Dissipation . . . . . . . . . . . . 200m W
Operating Temperature . . . .- 30 to 85°C
Storage Temperature . . . . - 55 to 125°C

IL7101N Features

• Low Power Consumption (PD=5mW) 100V/200V
• 100V/200V Common Built-in Voltage Regulator
• High Gain Differential Amplifier
• High Input Sensitivity
• Minimum External Parts
• Large Surge Margin
• Wide Operating Temperature Range (T=-30 to 85°C)
• High Noise Immunity

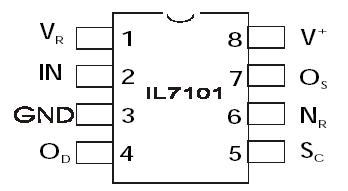

IL7101N Connection Diagram

IL7101N Connection Diagram

IL7101N datasheet

IL7101N
PDF/DataSheet Download

Find IL7101N Suppliers
