Features:

· Low DC line voltage; operates down to 1.6V (excluding polarity guard)
· Voltage regulator with adjustable static resistance
· Provides a supply for external circuits
· Symmetrical high-impedance inputs (64 kΩ) for dynamic, magnetic or piezo-electric microphones
· Asymmetrical high-impedance input (32 kΩ) for electret microphones
· DTMF signal input with confidence tone
· Mute input for pulse or DTMF dialing
- ILA1062: active HIGH (MUTE)
- ILA1062A: active LOW (MUTE)
· Receiving amplifier for dynamic, magnetic or piezo-electric earpieces
· Large gain setting range on microphone and earpiece amplifiers
· Line loss compensation (line current dependent) for microphone and earpiece amplifiers
· Gain control curve adaptable to exchange supply
· DC line voltage adjustment facility



Pinout

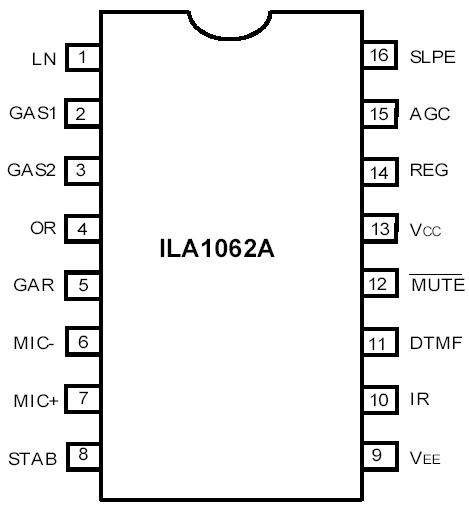

  Connection Diagram


Specifications

Characteristic Symbol Test Condition Min Typ Typ Unit
Positive Continuous Line
Voltage
VLN       12 V
Repetitive Line Voltage During
Switch-on or Line Interruption
VLN(R)       13.2 V
Repetitive Peak Line Voltage
for a 1ms Pulse per 5s
VLN(RM) R9 = 20W; R10 = 13W;
see Fig.6
    28 V
Line Current Iline R9 = 20W; note 1     140 mA
Input Voltage on all other Pins VI   -0.7   VCC+0.7 V
Total
Power
Dissipation
Standard DIP Ptot R9 = 20W; note 2     0.58 W
DIP with heatsink     0.67
Operating Ambient
Temperature
TA   -25   +75
Storage Temperature Tstg   -40   +125
Junction Temperature Tj       +125



Description

The ILA1062 and ILA1062A are integrated circuits that perform all speech and line interface functions required in fully electronic telephone sets.

They perform electronic switching between dialing and speech. The ICs operates at line voltage down to 1.6 V DC (with reduced performance) to facilitate the use of more telephone sets connected in parallel.

All statements and values of the ILA1062A refer to all versions unless otherwise specified. The ILA1062(ILA1062A) is packaged in a standard 16-pin plastic DIP and special plastic DIP with internal heatsink is also available.
