Part Number: ILX506
Description: The ILX506 is a reduction type CCD linear sensor developed for high resolution facsimiles and copiers....
- Table of contents:
ILX506
-
Suppliers
DataSheet
General Description
ILX506 General Description
The ILX506 is a reduction type CCD linear sensor developed for high resolution facsimiles and copiers. This sensor reads A3-size documents at a density of 400 DPI (Dot Per Inch). A built-in timing generator and clock-drivers ensure direct drive at 5V logic for easy use. In addition, reset pulse can be switched between internal generation and external input.
ILX506 Maximum Ratings
Supply voltage............ VDD1 11 V
Supply voltage............. VDD2 6 V
Operating temperature..... 10 to +60 °C
Storage temperature ......30 to +80 °C
Supply voltage............. VDD2 6 V
Operating temperature..... 10 to +60 °C
Storage temperature ......30 to +80 °C
ILX506 Features
• Number of effective pixels: 5000 pixels
• Pixel size: 7µm ×7µm (7µm pitch)
• Built-in timing generator and clock-drivers
• Ultra low lag/ultra high sensitivity/low dark output
• Single output method
• Maximum clock frequency: 12.5MHz
• Pixel size: 7µm ×7µm (7µm pitch)
• Built-in timing generator and clock-drivers
• Ultra low lag/ultra high sensitivity/low dark output
• Single output method
• Maximum clock frequency: 12.5MHz

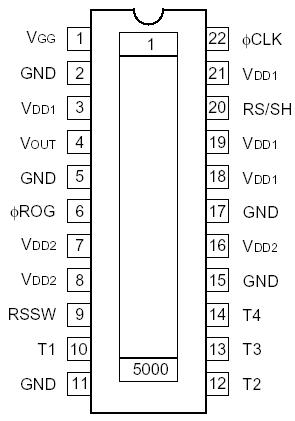

ILX506 Connection Diagram
ILX506
