Description: The ILX505A is a reduction type CCD linear sensor designed for facsimile, image scanner and OCR use. This sensor reads ...


Urgent Purchase

ILX505A General Description


The ILX505A is a reduction type CCD linear sensor designed for facsimile, image scanner and OCR use. This sensor reads A3 size documents at a density of 200 DPI (Dot Per Inch). A built-in timing generator and clock-drivers ensure direct drive at 5V logic for easy use.

ILX505A Maximum Ratings

Supply voltage ................ VDD1 11 V
Supply voltage .................VDD2 6 V
Operating temperature .........10 to +55 °C
Storage temperature ..........30 to +80 °C

ILX505A Features

• Number of effective pixels: 2592 pixels
• Pixel size: 11µm ´ 11µm (11µm pitch)
• Built-in timing generator and clock-drivers
• Ultra low lag
• High sensitivity
• Maximum clock frequency: 5MHz

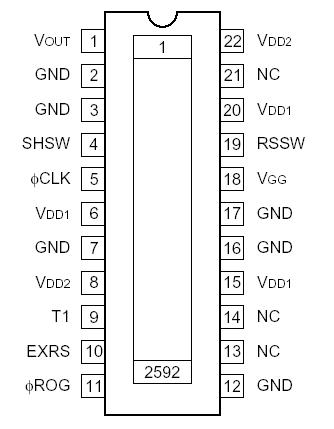

ILX505A Connection Diagram
