INA101

Features: ` LOW DRIFT: 0.25V/ max` LOW OFFSET VOLTAGE: 25V max` LOW NONLINEARITY: 0.002%` LOW NOISE: 13nVHz ` HIGH CMR: 106dB AT 60Hz` HIGH INPUT IMPEDANCE: 1010` 14-PIN PLASTIC, CERAMIC DIP, SOL-16, AND TO-100 PACKAGESApplication·STRAIN GAGES·THERMOCOUPLES·RTDs·REMOTE TRANSDUCERS·LOW-LEVEL SIGNAL...

product image

INA101 Picture
See larger image
SeekIC No. : 004375341 Detail

INA101: Features: ` LOW DRIFT: 0.25V/ max` LOW OFFSET VOLTAGE: 25V max` LOW NONLINEARITY: 0.002%` LOW NOISE: 13nVHz ` HIGH CMR: 106dB AT 60Hz` HIGH INPUT IMPEDANCE: 1010` 14-PIN PLASTIC, CERAMIC DIP, SOL-16...

INA101 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
INA101
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` LOW DRIFT: 0.25V/ max
` LOW OFFSET VOLTAGE: 25V max
` LOW NONLINEARITY: 0.002%
` LOW NOISE: 13nVHz
` HIGH CMR: 106dB AT 60Hz
` HIGH INPUT IMPEDANCE: 1010
` 14-PIN PLASTIC, CERAMIC DIP, SOL-16, AND TO-100 PACKAGES


Application

·STRAIN GAGES
·THERMOCOUPLES
·RTDs
·REMOTE TRANSDUCERS
·LOW-LEVEL SIGNALS
·MEDICAL INSTRUMENTATION


Pinout

Connection Diagram



Connection Diagram

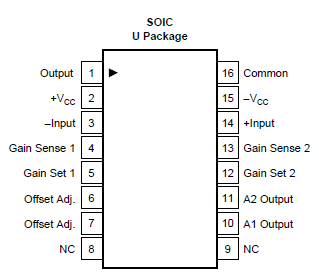

Connection Diagram





Specifications

Supply Voltage ................................................................................... ±20V
Power Dissipation ............................................................................ 600mW
Input Voltage Range ........................................................................... ±VCC
Output Short Circuit (to ground) ................................................ Continuous
Operating Temperature M, G Package ............................... 55 to +125
   P, U Package ..................................................................... 25 to +85
Storage Temperature M, G Package ................................... 65 to +150
   P, U Package ..................................................................... 40 to +85
Lead Temperature (soldering, 10s) M, G, P Package ......................... +300
Lead Temperature (wave soldering, 3s) U Package .......................... +260






Description

The INA101 is a high accuracy instrumentation amplifier designed for low-level signal amplification and general purpose data acquisition. Three precision op  amps and laser-trimmed metal film resistors are integrated on a single monolithic integrated circuit.

The INA101 is packaged in TO-100 metal, 14-pin plastic and ceramic DIP, and SOL-16 surface-mount packages. Commercial, industrial and military temperature range models are available.
